A medium-capacity 20-slot centralized phone charging management solution for departmental teams, mid-sized retail stores, educational institutions, and public service facilities.
Devices: Smartphones, small power banks, and USB-charged devices under 8 inches.

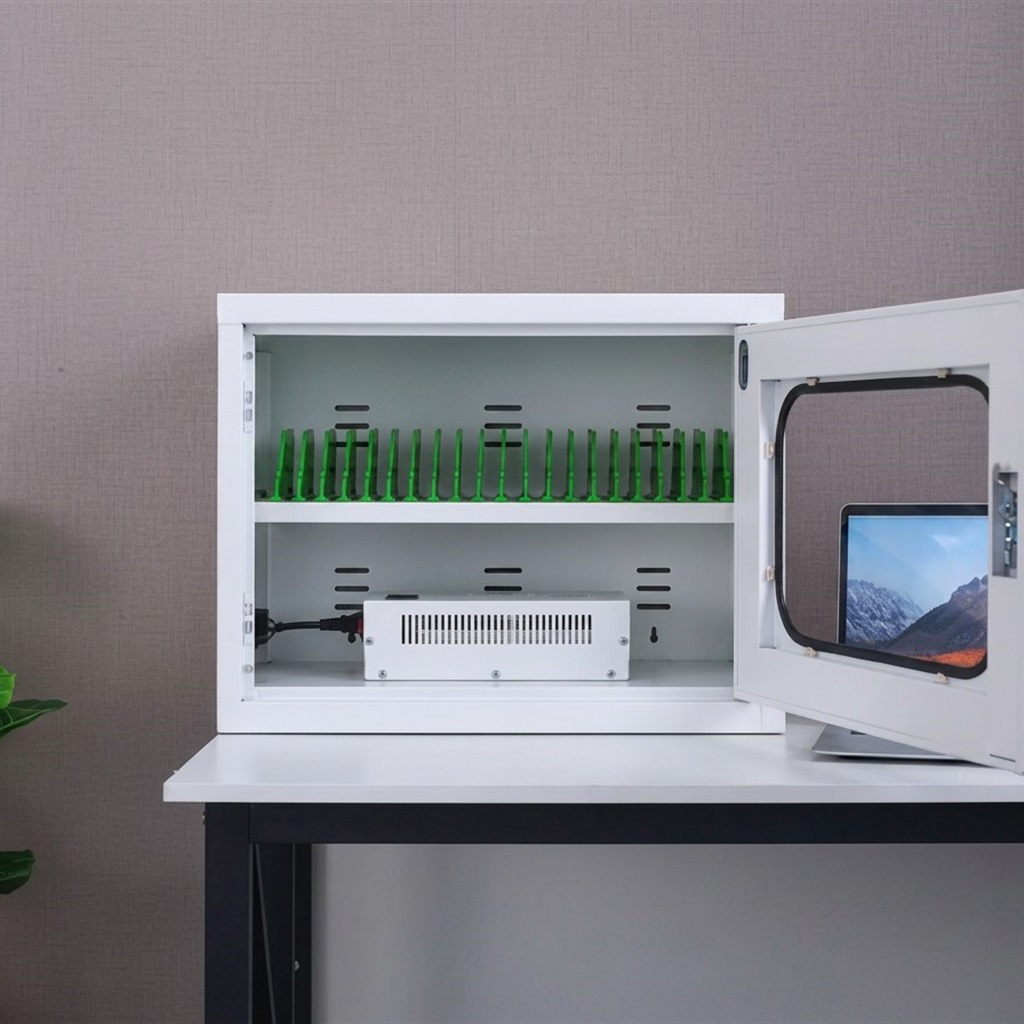

LK-PH20 is the largest single-tier model in the phone charging locker series, achieving 20 slots within a wide horizontal layout. The single-tier structure means all devices are at the same eye level — no bending or reaching required for daily access. 200W total power ensures simultaneous fast charging for all 20 devices. Ideal for front desks, classrooms, and back-office areas where managing many devices on one plane is needed.
Footprint of only 430×580×270mm and weight of 14.55kg — no floor space required, ideal for front desks, cashier counters, and office desks.
20 independent slots on a single tier — all devices at eye level, no bending needed, making daily access efficient.
5V/2A output per slot with QC 2.0/3.0 compatibility — 200W total power supports simultaneous fast charging under full load.
20 slots separated by ABS flame-retardant dividers — prevents device stacking and scratching, enables numbered management.
Cabinet body made of cold-rolled steel with electrostatic powder coating for scratch resistance in daily use and long-term durability.
Transparent door enables visual inspection without opening — check device charging status at a glance. Paired with key lock for basic asset security.
Applications
For device management in staff break areas and shift-change zones, covering larger teams.
For classroom phone management, suitable for 40-50 student classes with group rotation.
For staff device management in government service halls, bank branches, and public service counters.
For agent phone management in customer service centers to improve work efficiency.
Technical Specifications
| Capacity | 20 slots, supporting simultaneous charging for 20 devices |
| Charging Output | 5V/2A per port (Max 10W), QC 2.0/3.0 compatible |
| Total Output | 200W |
| Input Voltage | AC 100-240V, 50/60Hz, wide-voltage input for global use |
| Dimensions | 430×580×270mm (H × W × D) |
| Slot Size | 160×22×230mm (H × W × D) |
| Compatible Devices | Smartphones under under 8 inches and small power banks |
| Body Material | Cold-rolled steel with electrostatic powder coating |
| Divider Material | ABS flame-retardant engineering plastic |
| Door Material | Acrylic see-through door |
| Colors | Black / White (customizable) |
| Tiers | 1 tier(s) |
| Weight | 14.55 kg |
| Safety Protection | Overload, short-circuit protection, low-voltage safe output, auto power-off |
| Accessories | Power cord ×1, keys ×2 |
| Warranty | 3-year warranty for body structure, 1-year for electronic components |
Product Structure and Details

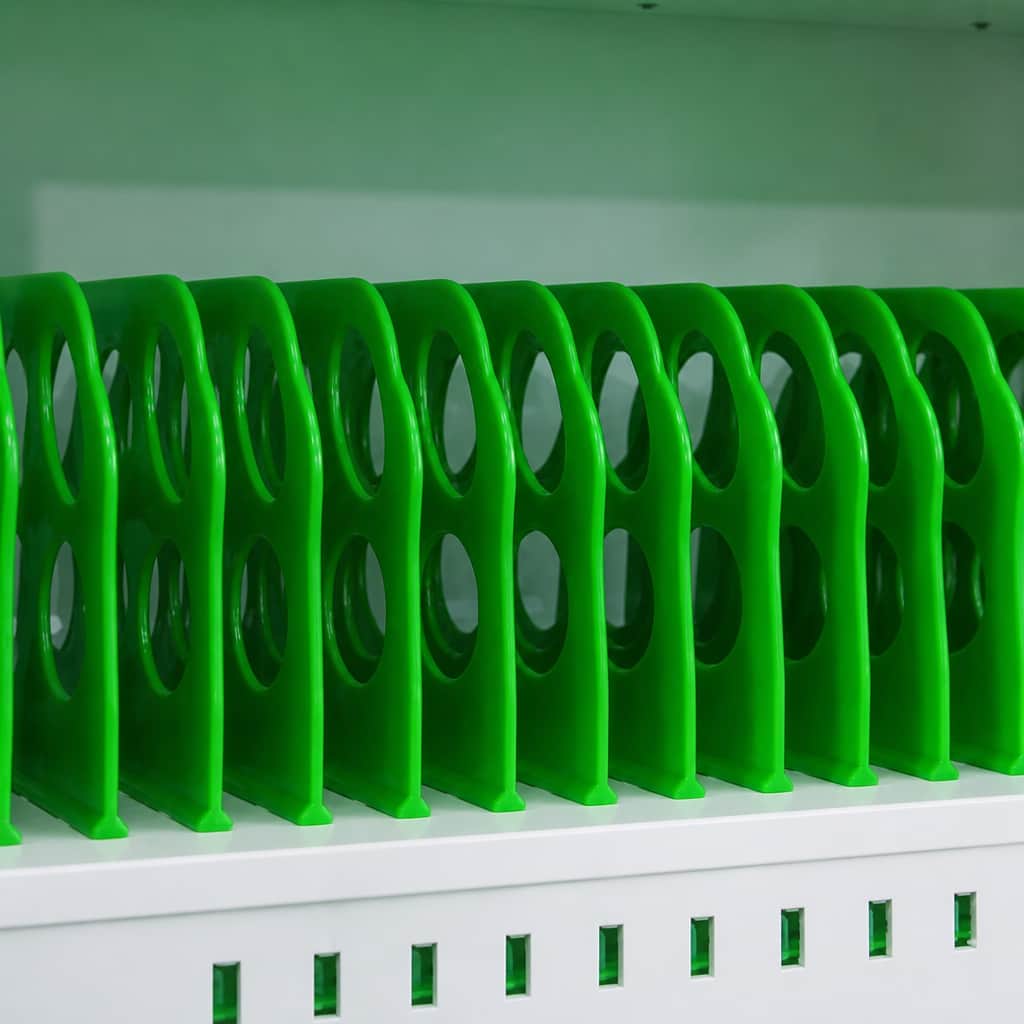

Tough ABS slots hold phones upright — better cooling, easy access.

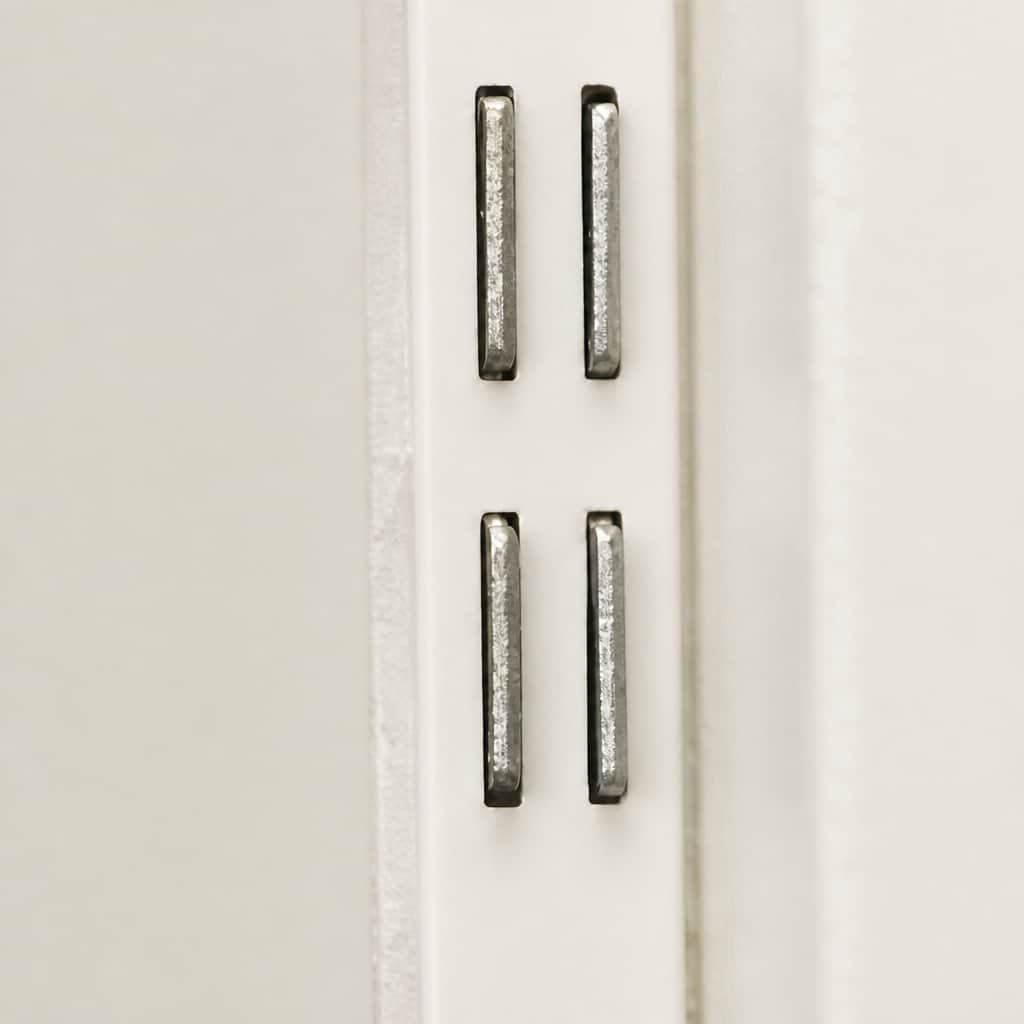

Magnetic latch keeps the door firmly shut — no swinging from wind or bumps.

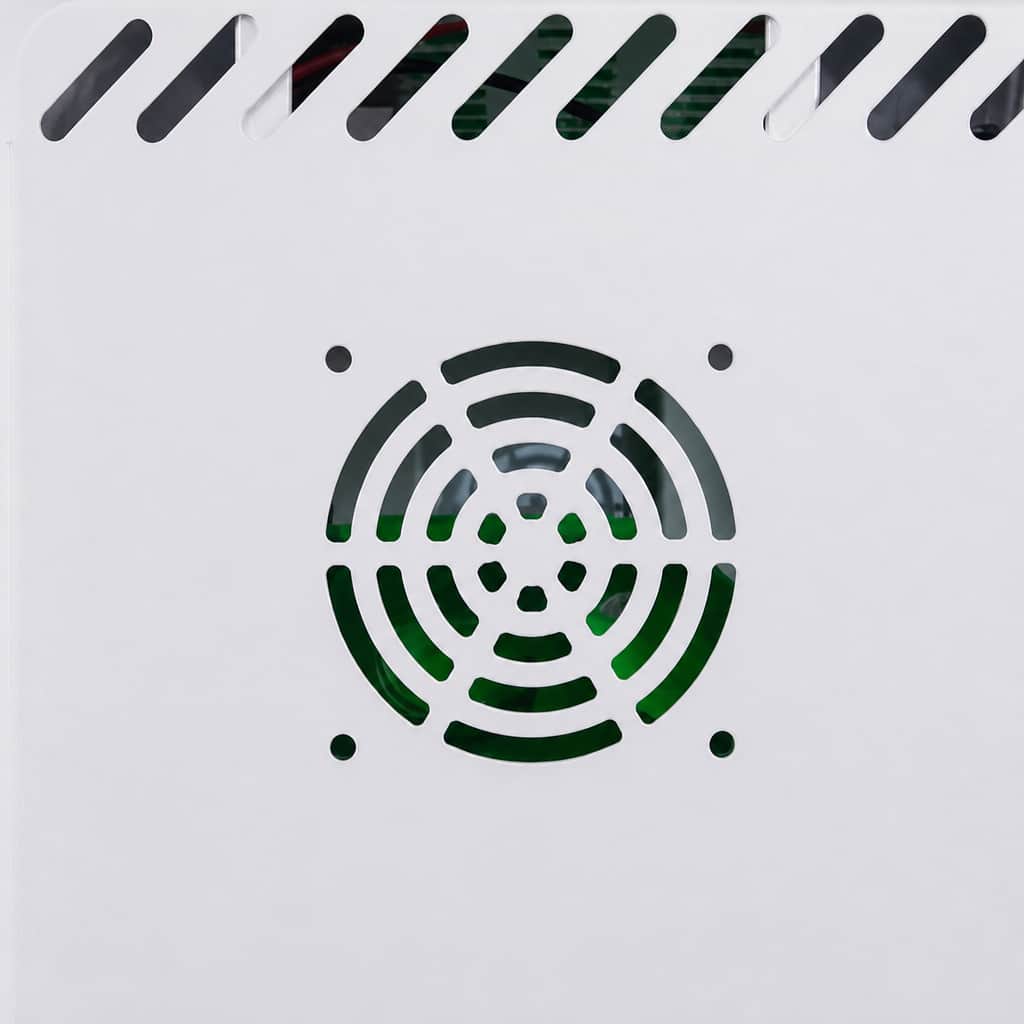

Ventilation openings improve airflow for cooler bulk charging.
● Low-Voltage Safe Output: 5V low-voltage output per port — well below the human body safety voltage threshold.
● Overload Protection: When total load exceeds the 200W safe range, the system automatically limits current.
● Short-Circuit Protection: Provides instant protection under abnormal short-circuit conditions.
● Flame-Retardant Materials: Slot dividers use ABS flame-retardant engineering plastic — resistant to ignition and flame spread.
● Auto Power-Off: Automatically stops charging when device is full, preventing overcharge and extending battery life.
● Cabinet Grounding: Metal body design supports grounding, compliant with international electrical safety standards.
Device Compatibility
Compatible with all major smartphone brands (iPhone, Samsung, Google Pixel, Xiaomi, Huawei, etc.) and small USB-charged devices.
Each slot supports up to 160×22×230mm, accommodating phones under under 8 inches and standard power banks.
Automatically recognizes QC 2.0/3.0, Apple 2.4A, Samsung AFC, BC1.2, and other protocols.
Standard-thickness cases (≤2mm) recommended. Ultra-thick or kickstand cases should be tested in advance.
Before bulk purchase, confirm actual device dimensions, case thickness, and required cable specs.
OEM/ODM Customization Options
Supports silk-screen printing and laser engraving on the body, plus branding for nameplates and packaging.
Beyond black and white, body colors can be customized per project (MOQ applies, please inquire).
Color box, white box, and outer carton labeling customization available for OEM and channel distribution.
Standard mechanical key lock; combination locks or custom key management systems available.
Default plug matches target market standard (US/EU/UK/AU). Please confirm before bulk purchase.
● Packaging Method: Single-unit independent packaging; outer carton printing customizable per OEM.
● Package Contents: LK-PH20 charging locker body ×1, power cord ×1, keys ×2, user manual ×1.
● Sample Shipping: Samples typically ship within 7-14 business days, subject to stock and customization.
● Bulk Shipment: Small trial orders and large project shipments supported; lead time per order volume.
● MOQ: MOQ 10 units for standard models; please inquire for customized models.
● Data to Confirm: To be added: package dimensions, gross/net weight, container quantity, shipping suggestions.
Recommended Accessories
USB-C short cable (0.5m): customized length with E-Mark certified chip.

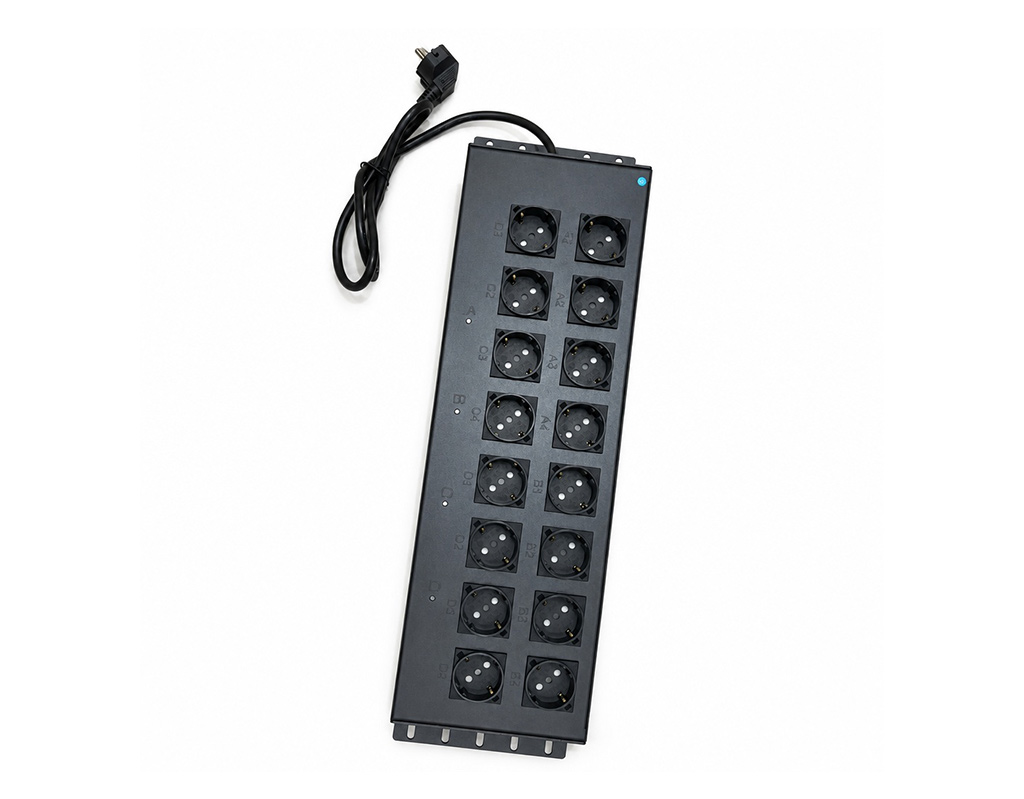

Smart PDU with configurable options to meet different needs, making the charging cart more feature-rich.

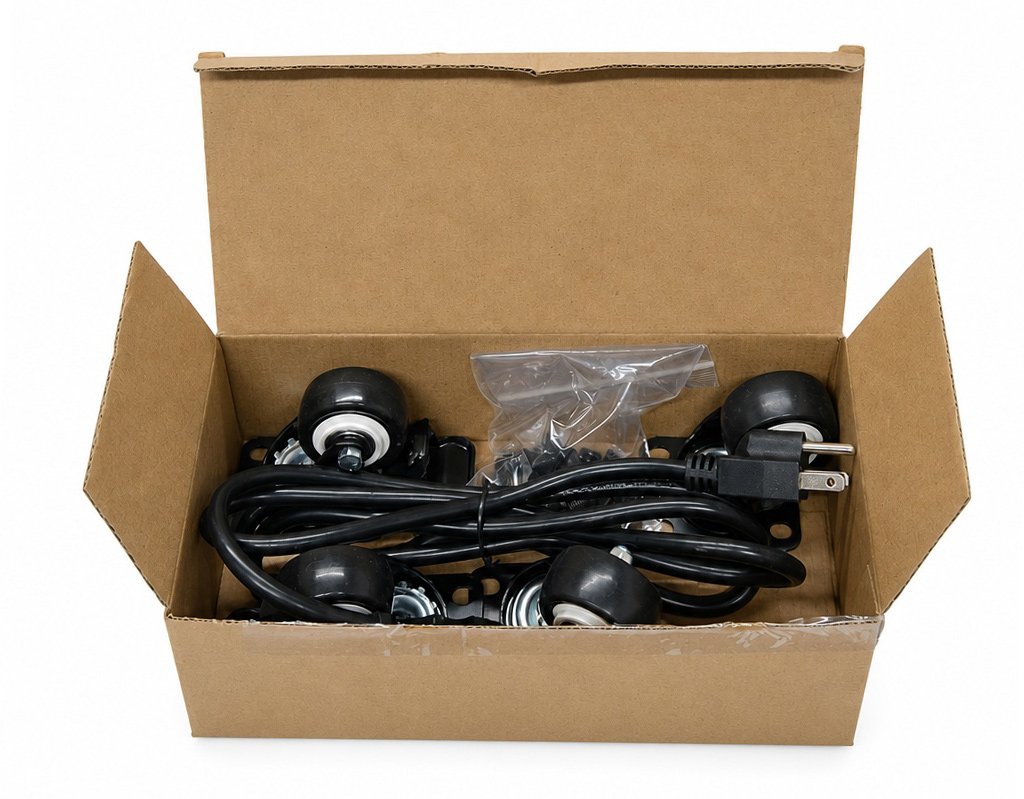

Optional items can include power cord, spare keys, numbering labels, cable clips, spare casters, and manual kits according to project needs.
