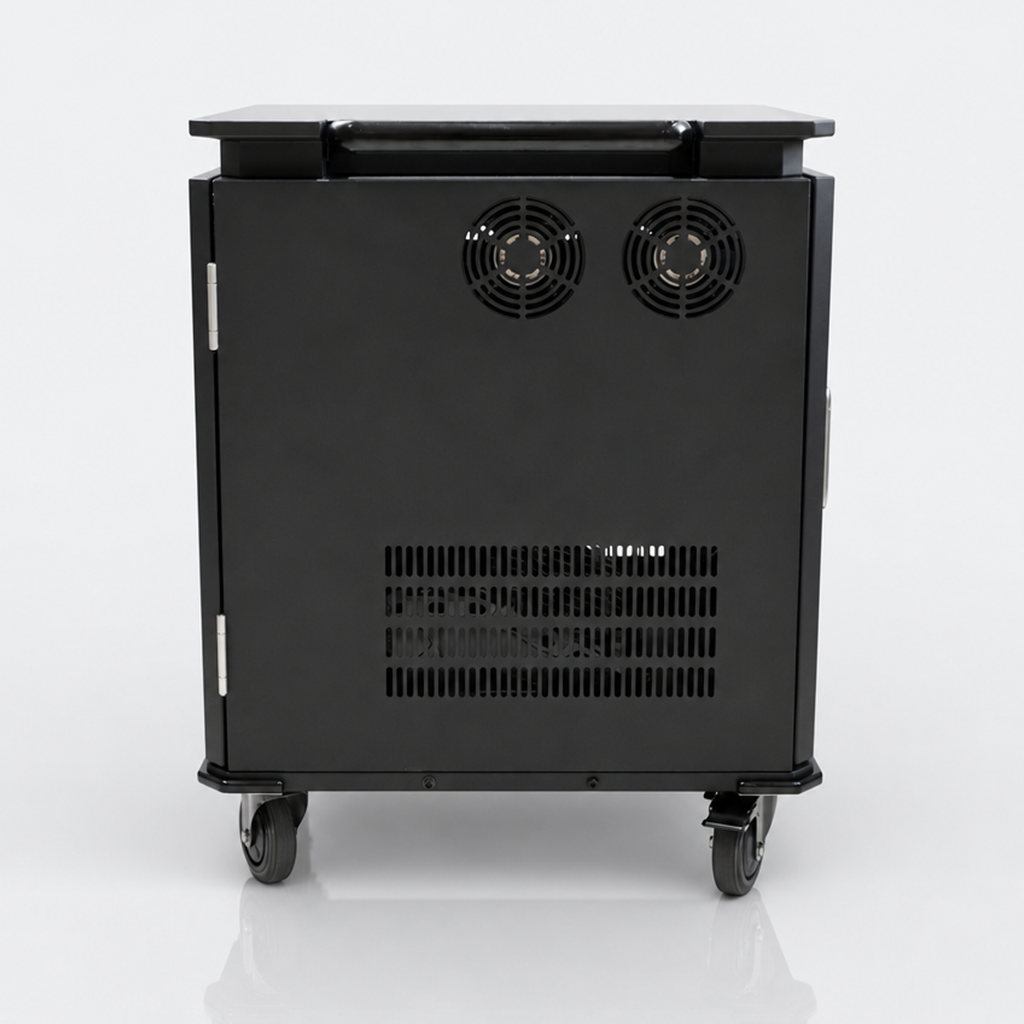

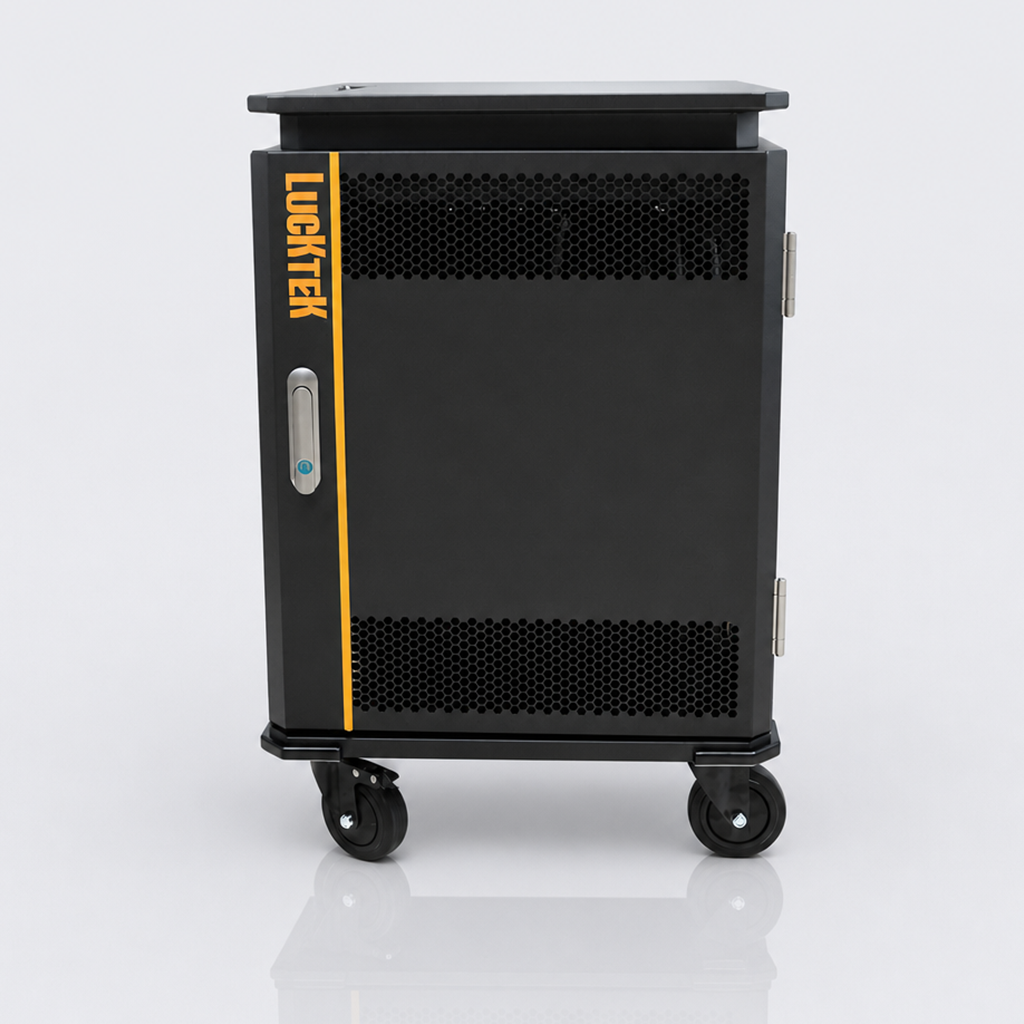

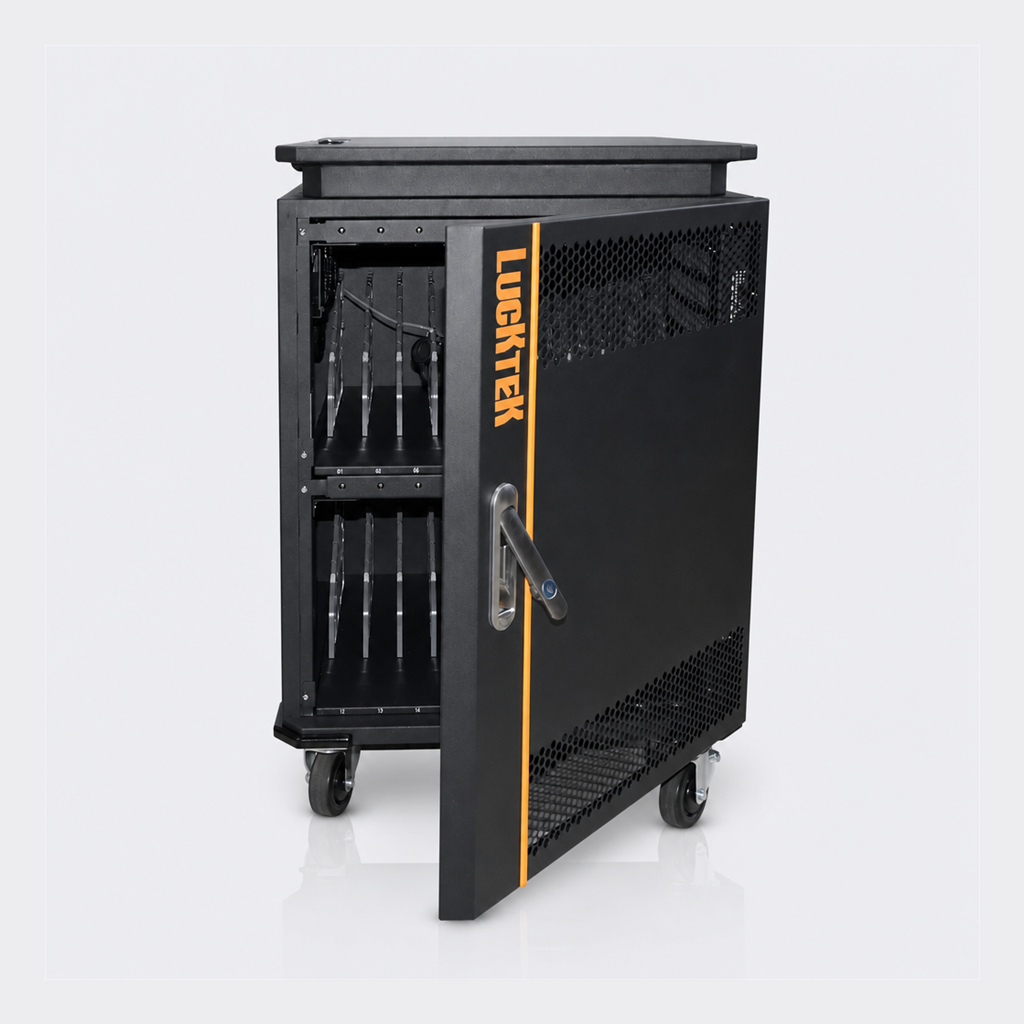

A 20-slot 65W fast-charging cabinet for modern Type-C devices. Up to 65W PD output per port charges 20 laptops/tablets simultaneously at high speed, with a compact body (505x600x646+125mm) ideal for space-constrained classrooms and offices.
Devices: Laptops/tablets under 15.6\" of all major brands (configurable slot width; models up to 16\" available).
LK-CC20T65 is a 20-slot 65W fast-charging cabinet designed for modern Type-C devices. Each bay features an independent Type-C port with up to 65W PD output, delivering high-speed charging to 20 laptops/tablets simultaneously without extra adapters. The compact black-grey metal body (505x600x646+125mm) is optimized for classroom and office spaces. Four 4-inch silent casters (two with brakes) enable smooth movement and secure positioning, while the front spring lock protects devices. CE/RoHS/EMC certified, with Sync & Charge models available for Apple Configurator/MDM workflows.
Up to 65W PD per port, 20 devices fast-charging simultaneously — fits modern Type-C laptops/tablets with no extra adapters.
Compact body of 505x600x646+125mm, optimized for space-constrained classrooms and offices.
Four 4-inch silent casters, two with brakes — smooth movement between rooms and stable when locked.
Front spring lock, 50,000+ open/close cycle tested, preventing unauthorized access.
Over-voltage, over-current, short-circuit, over-temperature protection; 100% full-load aging, insulation, and continuity tests.
Sync & Charge models available for Apple Configurator/MDM device management workflows.
Applications
For centralized Type-C laptop/tablet fast charging in classrooms and computer labs.
For centralized charging of modern Type-C devices in meeting rooms and training centers.
For centralized charging of mobile terminals at nurse stations and healthcare offices.
For VR headsets and other Type-C devices requiring fast-turnaround charging in venue operations.
Technical Specifications
| Capacity | 20 slots (simultaneous charging for 20 devices) |
| Charging Type | USB Type-C 65W per port (PD fast charging) |
| Dimensions | 505 x 600 x 646 mm + 125 mm wheel clearance |
| Material | SPCC cold-rolled steel + electrostatic powder coating |
| Color | Black-Grey |
| Wheels | 4× 4-inch silent casters, 2 with brakes |
| Lock | Front door spring lock (50,000+ cycles tested) |
| Safety | Over-voltage, over-current, short-circuit, over-temperature protection; aging, insulation, and continuity tests |
| Compatibility | Laptops/tablets under 15.6\" (configurable; up to 16\" available) |
| Printing | Digital Printing |
| Application | Office / School Multimedia Machine |
| Warranty | Lucktech after-sales support; modular cables individually replaceable |

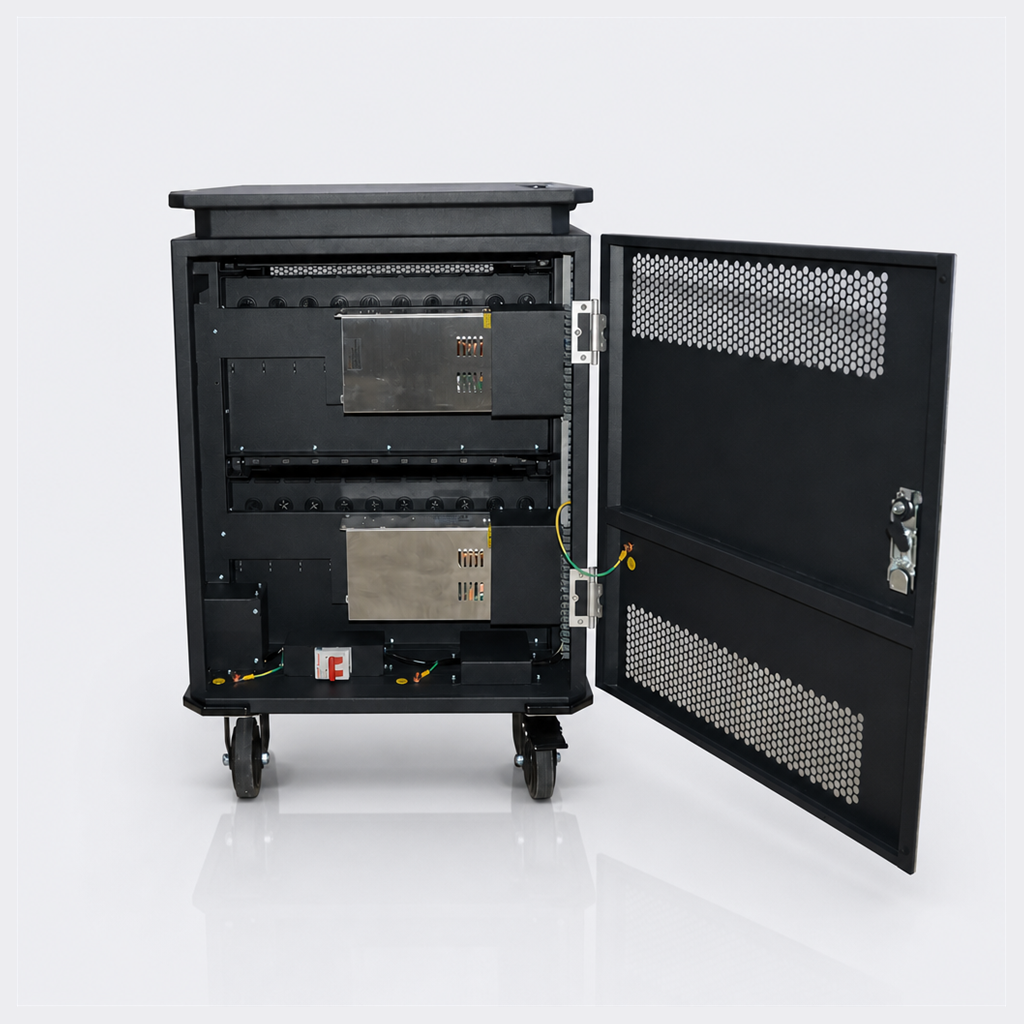

Product Structure and Details

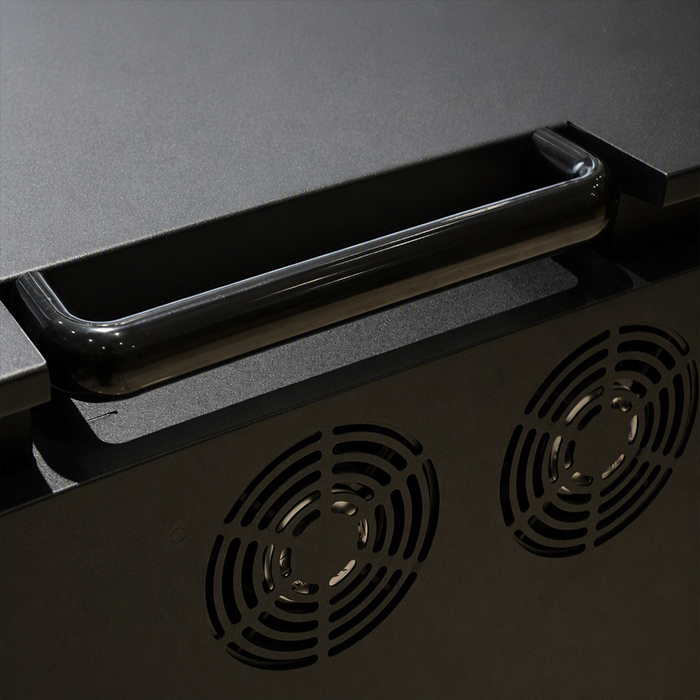

A fan is fitted to ensure heat dissipation inside the cabinet.

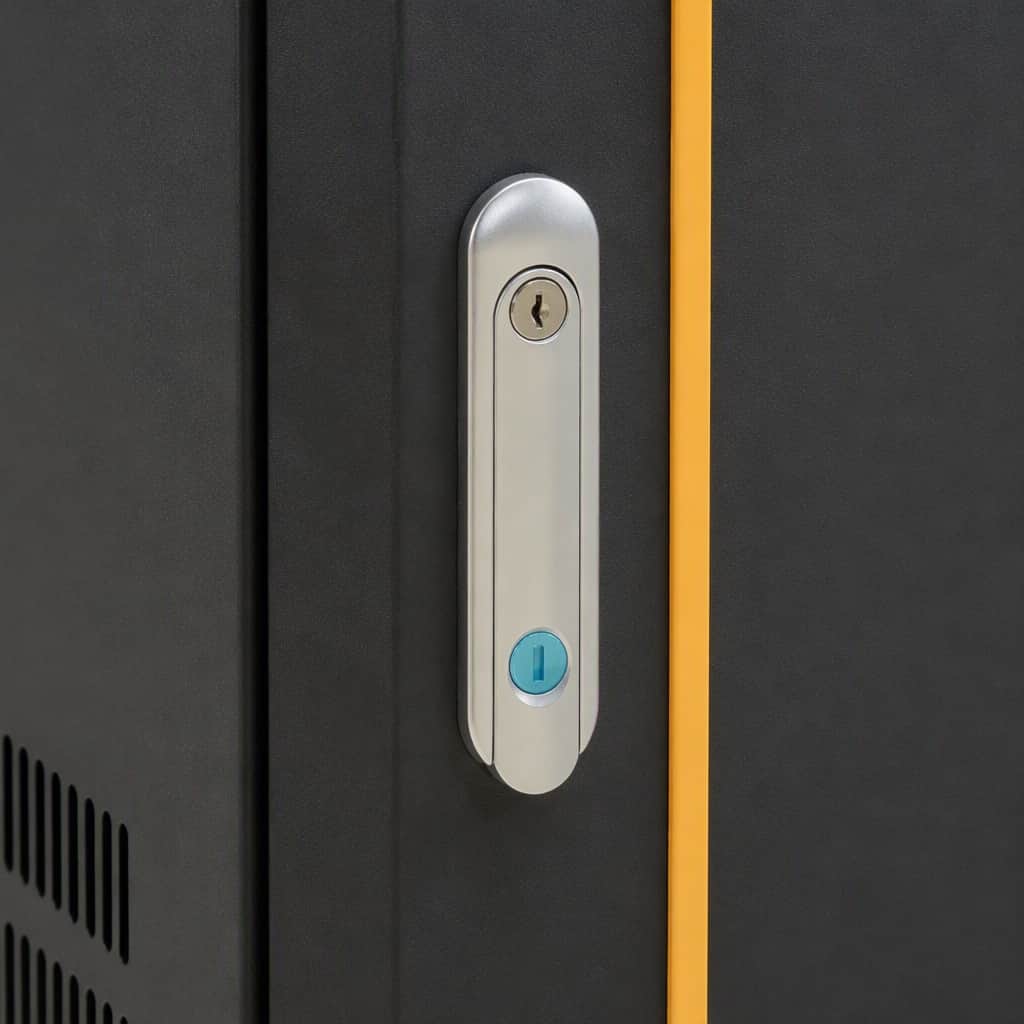

A range of lock types is available, combining convenient operation with security.

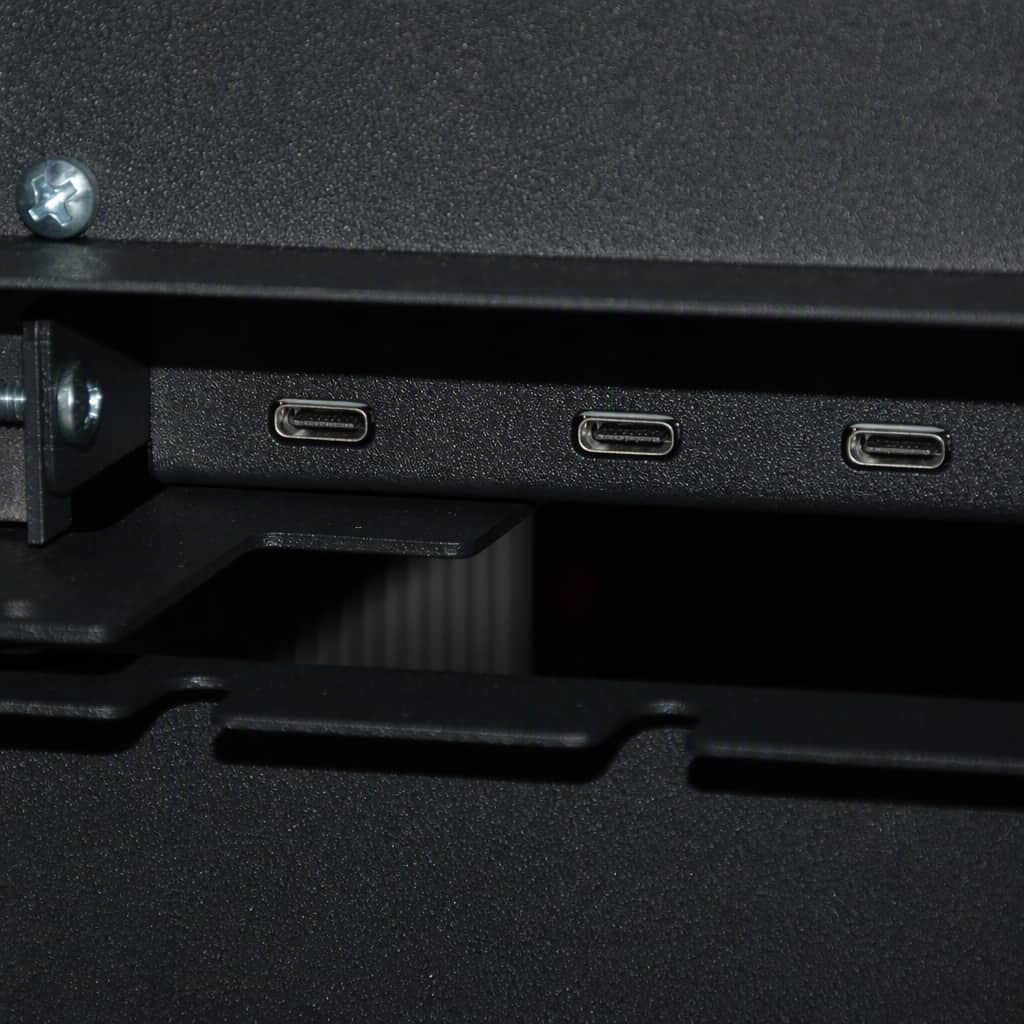

Supports fast charging over Type-C.

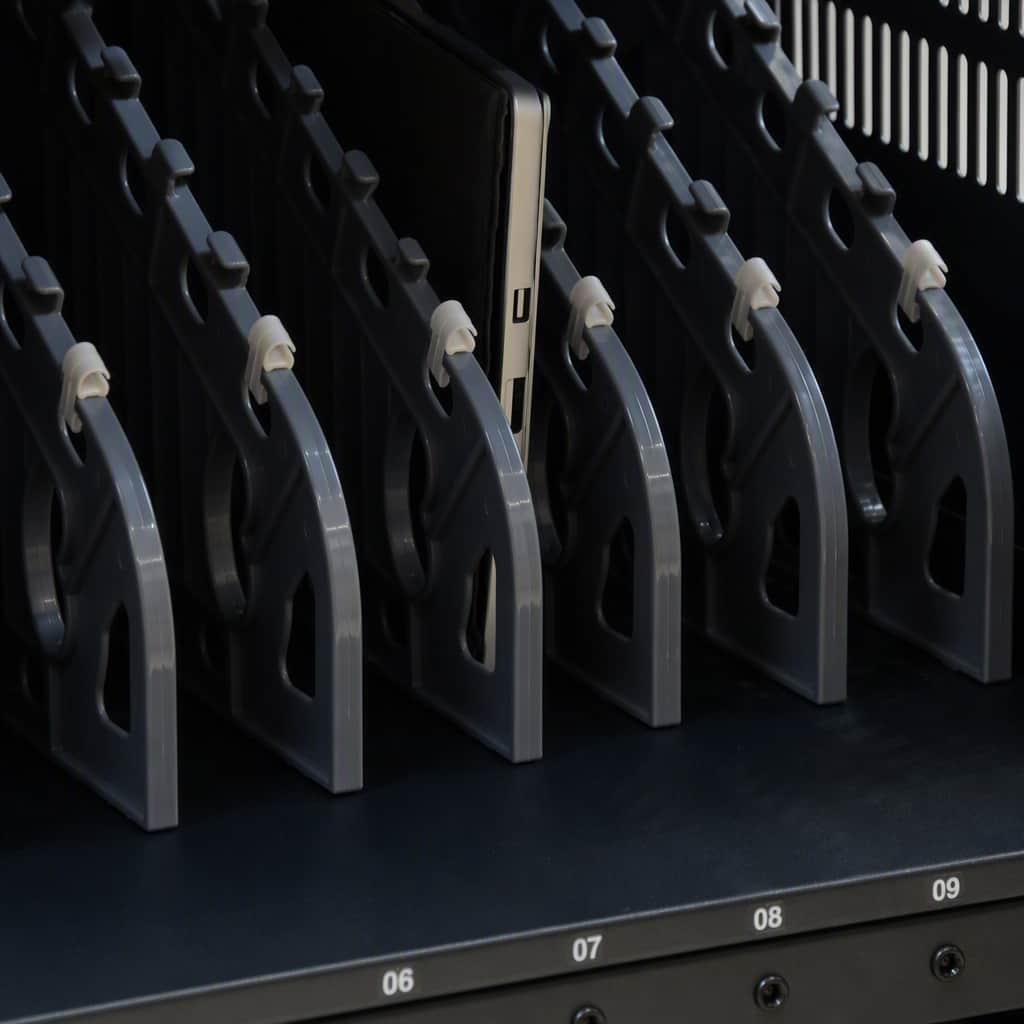

Independent compartments keep devices separated and make daily management easier.

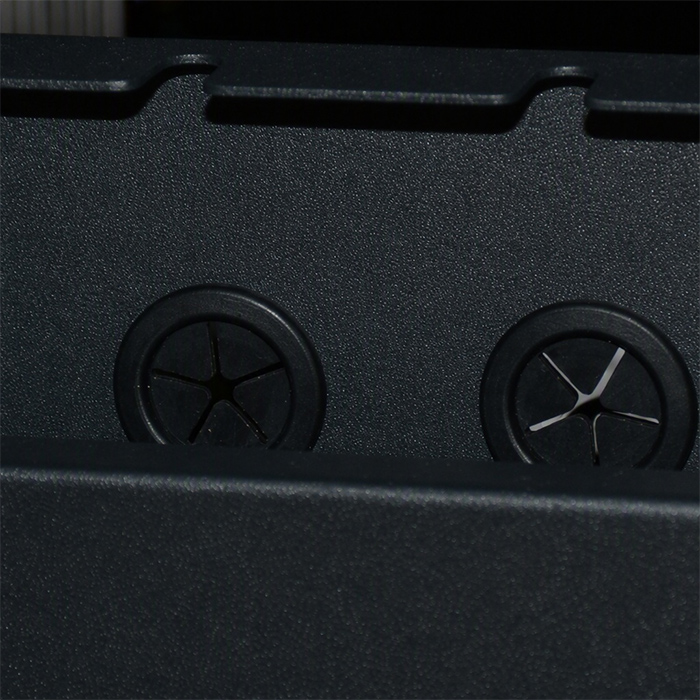

The cable management structure keeps the inside of the cabinet neat and organized.

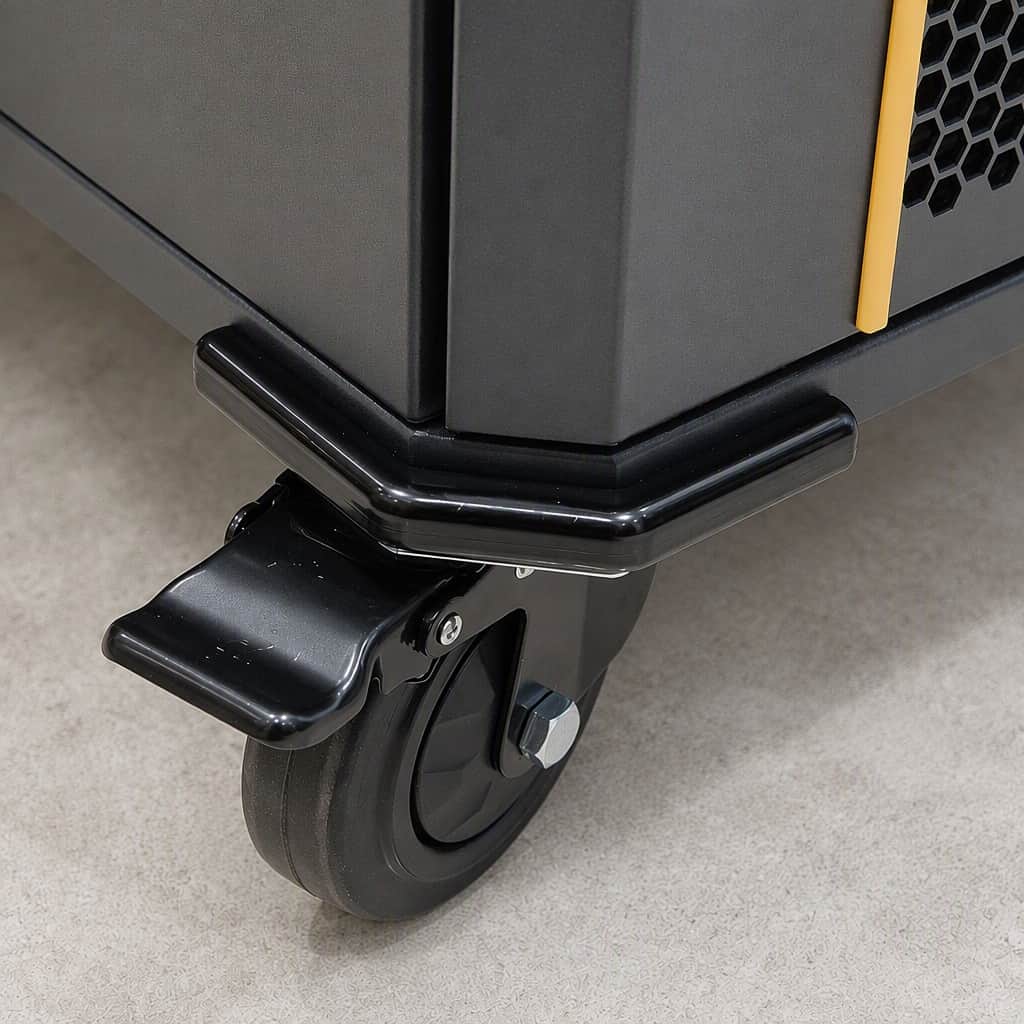

Casters let the cabinet move smoothly and steadily.
● Over-Voltage: Automatically cuts power when voltage rises abnormally to protect device circuits.
● Over-Current: Automatically limits current beyond the safe range to prevent circuit and device overload damage.
● Short-Circuit: Instant power cut under abnormal short-circuit conditions to reduce electrical failure risk.
● Over-Temperature: Automatic protection when internal temperature is abnormal, preventing overheating hazards.
● Aging Test: 100% full-load aging test before shipment to ensure long-term stable operation.
● Insulation & Grounding: High-voltage insulation test and earth continuity test, compliant with CE and international safety standards.
Device Compatibility
Compatible with laptops, tablets, and USB devices under 15.6\" of all major brands (Sync & Charge Model Support Apple Configurator/MDM).
Standard bays fit devices under 15.6\"; slot width configurable, models up to 16\" available.
Devices connect via Type-C cables, up to 65W PD fast charging per port.
Optional USB-A / USB-C PD / AC / Sync & Charge interface combinations.
Before bulk purchase, provide the device model list to confirm bay size and interface compatibility.
OEM/ODM Customization Options
Multiple capacity options from 8 to 30 slots per purchasing needs.
Slot width and internal structure customizable per device dimensions.
Four interface options: USB-A / USB-C PD / AC / Sync & Charge.
Mechanical key / PIN / RFID electronic lock options.
Color, logo, silk-screen/laser engraving customizable.
US/EU/UK/AU plug standards per target market.
Wooden pallet, carton, and corner protection packaging per project.
CAD drawings and 3D renderings provided for project confirmation.
● Packaging: Fully assembled: wooden pallet + honeycomb carton + PE foam + anti-scratch film + corner protection.
● Package Contents: LK-CC20T65 cabinet ×1, power cord ×1, keys ×2, user manual ×1.
● Sample Shipping: Samples typically ship in 7-14 business days, subject to stock and customization requirements.
● Bulk Shipment: Small trial orders and bulk project supply supported; lead time per order volume and customization.
● MOQ: 10 pcs (typically 5-10 for customized, depending on level)
● Data to Confirm: To be added: package dimensions, gross/net weight, container quantity, shipping suggestions.
Recommended Accessories
USB-C short cable (0.5m): customized length with E-Mark certified chip.
Smart PDU with configurable options to meet different needs, making the charging cart more feature-rich.
Optional items can include power cord, spare keys, numbering labels, cable clips, spare casters, and manual kits according to project needs.
