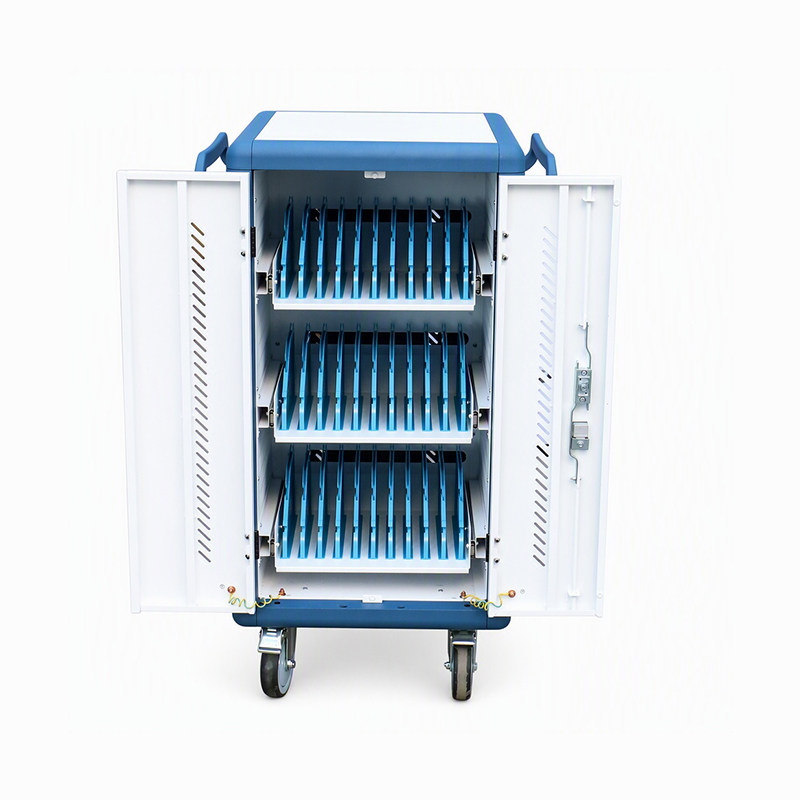

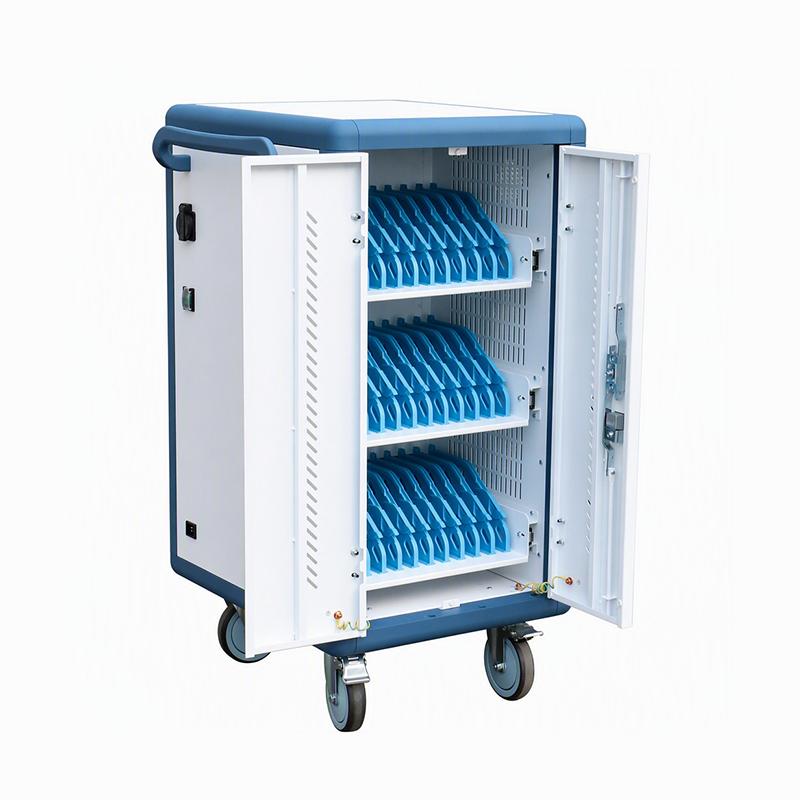

A 30-slot charging and storage solution for K12 schools, education projects, enterprise IT device management, and tender-based procurement.
Devices：iPads, Chromebooks, laptops, and other mobile devices that support AC charging.
Designed for large-scale education deployment,The main body adopts 1.0mm-1.5mm cold-rolled steel plate，The main frame adopts high strength aluminum profiles，the cabinet is provided with ABS engineering plastic partition layer，ayering the tablet is effective in preventing scratches.Compatible with various devices, the AC direct charging current voltage is stable.
Automatically matches 5V/9V/12V/15V/20V output and allocates power according to device requirements to help protect battery life.
android system、IOS system、Windows system
Other Android devices②Other mobile terminals③V+/V-No agreement class
Supports devices up to 14 inches, including devices with protective cases, making it suitable for mixed device fleets in schools.
The main body adopts 1.0mm-1.5mm cold-rolled steel plate，The main frame adopts high strength aluminum profiles，the cabinet is provided with ABS engineering plastic partition layer，ayering the tablet is effective in preventing scratches.
5-inch medical-grade casters provide smooth and quiet movement for classrooms, offices, and corridors.
Applications
Used in classrooms, computer labs, libraries, and device management rooms for centralized charging, storage, and management of student devices.
Suitable for notebook/tablet-based teaching, Chromebook deployment, smart classroom projects, and school device upgrade programs.
Suitable for enterprise IT teams managing training devices, meeting devices, mobile work terminals, or shared device pools.
Suitable for procurement projects requiring certification documents, specifications, authorization files, and bulk supply support.
Technical Specifications
| Output | 110V/220V 50/60Hz 10A/16A |
| Input | AC 100-240V, 50/60Hz, wide-voltage input for global use |
| Dimensions | 640mm (W) × 620mm (D) × 1200mm (H) |
| Material | The main body adopts 1.0mm-1.5mm cold-rolled steel plate，The main frame adopts high strength aluminum profiles |
| Certifications | UL 62368-1, CE-LVD, CE-EMC, RoHS, SAA |
| Safety | Overload protection, short-circuit protection, leakage protection, and soft-start protection against breaker tripping |
| Warranty | 5-year warranty for the body structure and 3-year warranty for electronic components |
Product Structure and Details
The cabinet body is made of aluminum alloy and forms the main structure of the cabinet.
A range of lock types is available, combining convenient operation with security.

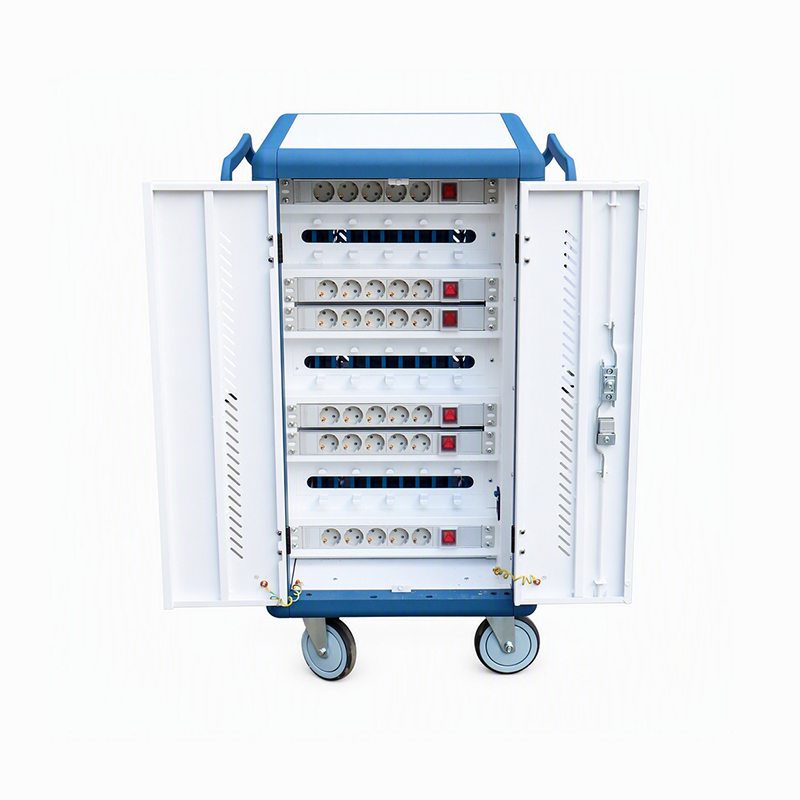

Built-in USB-A, Type-C, and AC direct-charging modules are available to choose from.
Independent compartments keep devices separated and make daily management easier.
The cable management structure keeps the inside of the cabinet neat and organized.
Casters let the cabinet move smoothly and steadily.
● Overload Protection: When the load is abnormal or exceeds the safe range, the system provides protection to reduce device and circuit risks.
● Short-Circuit Protection: Provides protection under abnormal short-circuit conditions to help reduce electrical failure risks.
● Leakage Protection: Provides electrical safety protection suitable for public-use environments such as schools and offices.
● Soft-Start Protection: Soft-start design reduces instantaneous impact during centralized startup and helps reduce the risk of breaker tripping.
● Asset Security: The all-steel body and three-point locking system help provide anti-pry, anti-theft, and centralized asset protection.
● Optional Upgrades: For projects requiring higher security, padlock holes or RFID electronic lock upgrades can be considered.
Device Compatibility
Suitable for notebook、iPads, Chromebooks, tablets, laptops、phone etc.
Supports devices up to 14 inches, including devices with protective cases.
Automatically recognizes protocols such as PD2.0/3.0 and QC3.0, then allocates 18W to 65W of power as needed.
If customer devices do not support USB-C, the F Series AC socket charging cart can be recommended for compatibility with original adapters.
Before bulk purchasing, confirm device dimensions, protective case thickness, charging port type, and required cable specifications.
OEM/ODM Customization Options
Supports branding customization such as body logo, nameplate, and packaging labels.
Body colors can be customized according to project requirements to match school, enterprise, or channel branding.
Carton and outer-box label customization are available for OEM branding and channel sales.
30-slot, 60-slot, or other capacity options can be recommended based on purchasing needs.
Padlock holes or RFID electronic lock upgrades can be selected according to project security requirements.
Plug standard, cable length, and cable inclusion should be confirmed according to the target market.
● Packaging Method: Standard single-unit packaging can be used, and outer carton information can be customized according to project or OEM requirements.
● Package Contents: Confirm whether the package includes the charging cart body, USB-C short cables, anti-tip kit, user manual, certificate, and other items.
● Sample Shipping: Samples can be shipped in as fast as 3 days, subject to stock status, customization requirements, and logistics method.
● Bulk Shipment: Small trial orders and bulk project shipments are supported.
Recommended Accessories
USB-C short cable (0.5m): customized length with E-Mark certified chip.
Smart PDU with configurable options to meet different needs, making the charging cart more feature-rich.
Optional items can include power cord, spare keys, numbering labels, cable clips, spare casters, and manual kits according to project needs.
