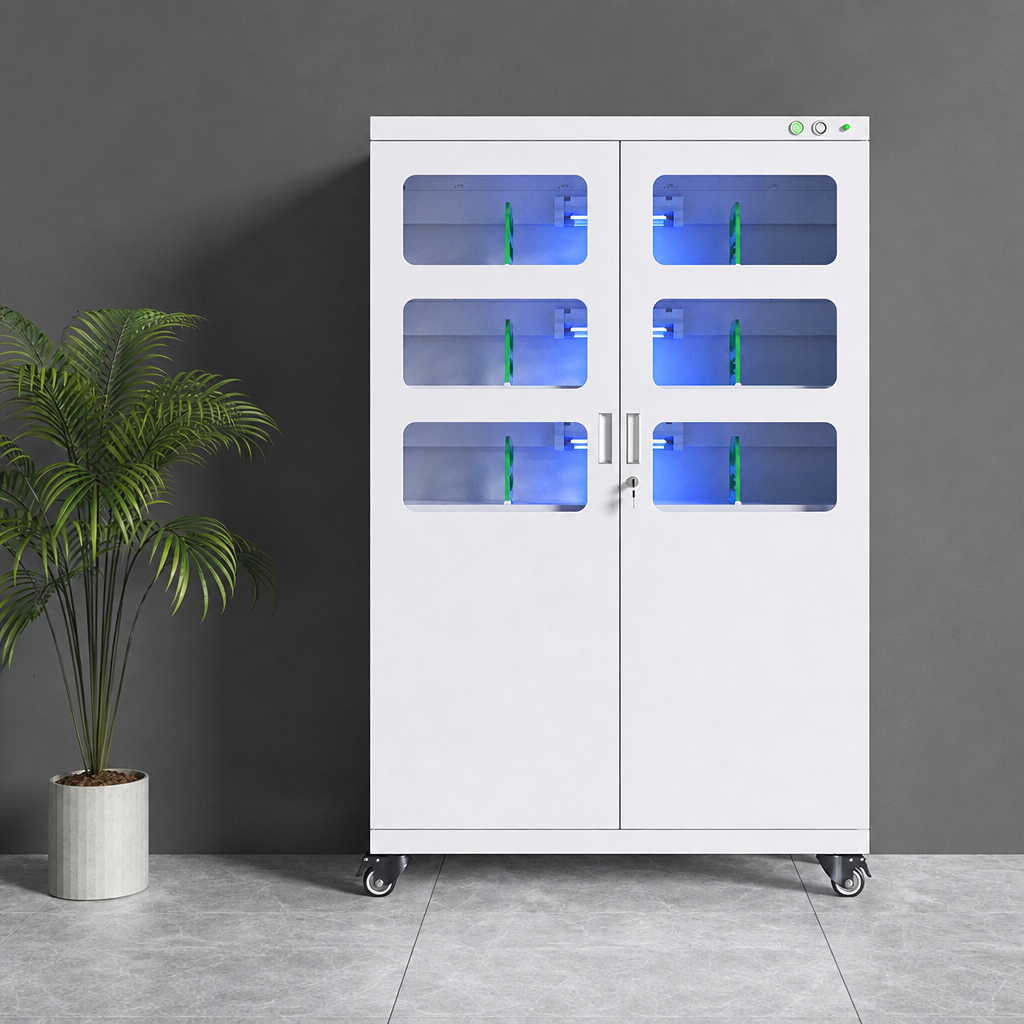

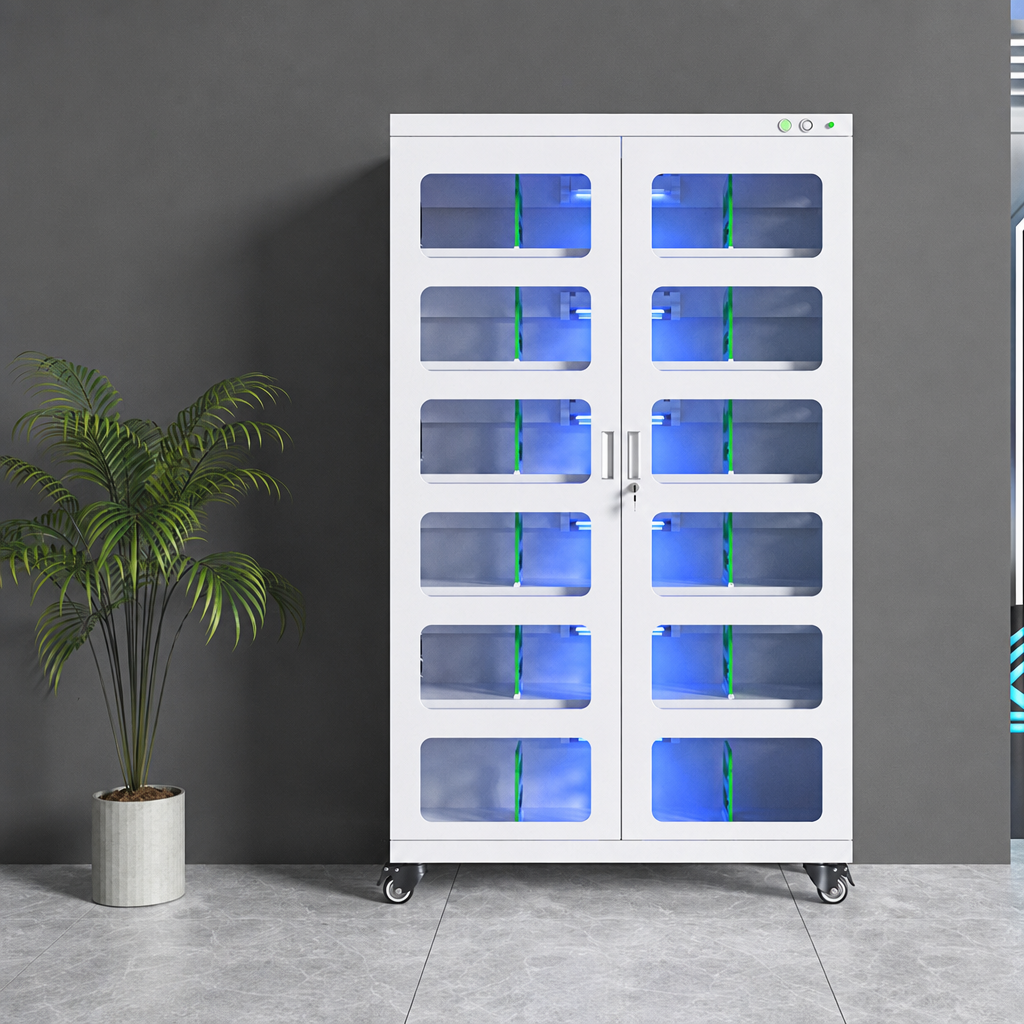

An integrated smart VR headset centralized charging, UV disinfection, and secure storage solution for VR esports arenas, VR experience centers, VR education & training institutions, and immersive theater scenarios.
Devices: Quest 3/Pro, Pico 4/Ultra/3, HTC VIVE, PlayStation VR2, and other mainstream standalone and tethered VR headsets.

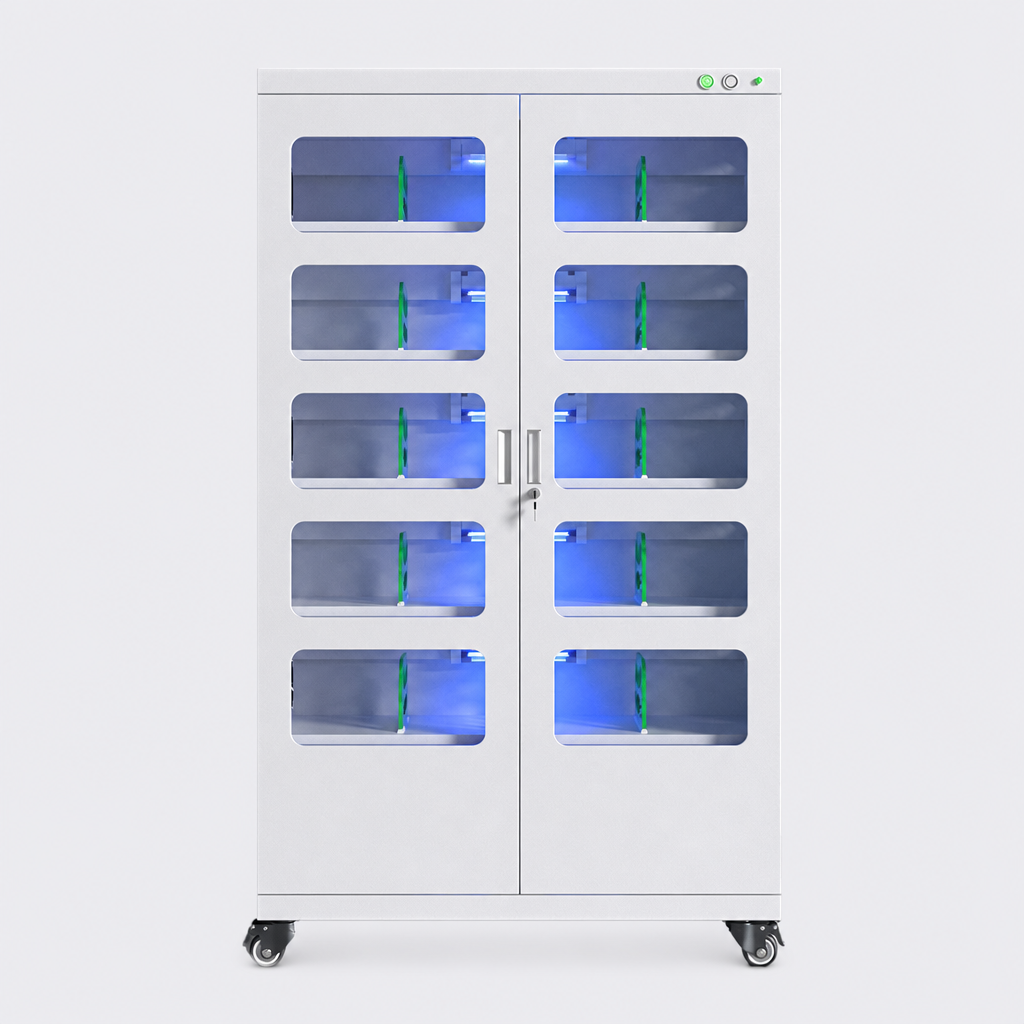

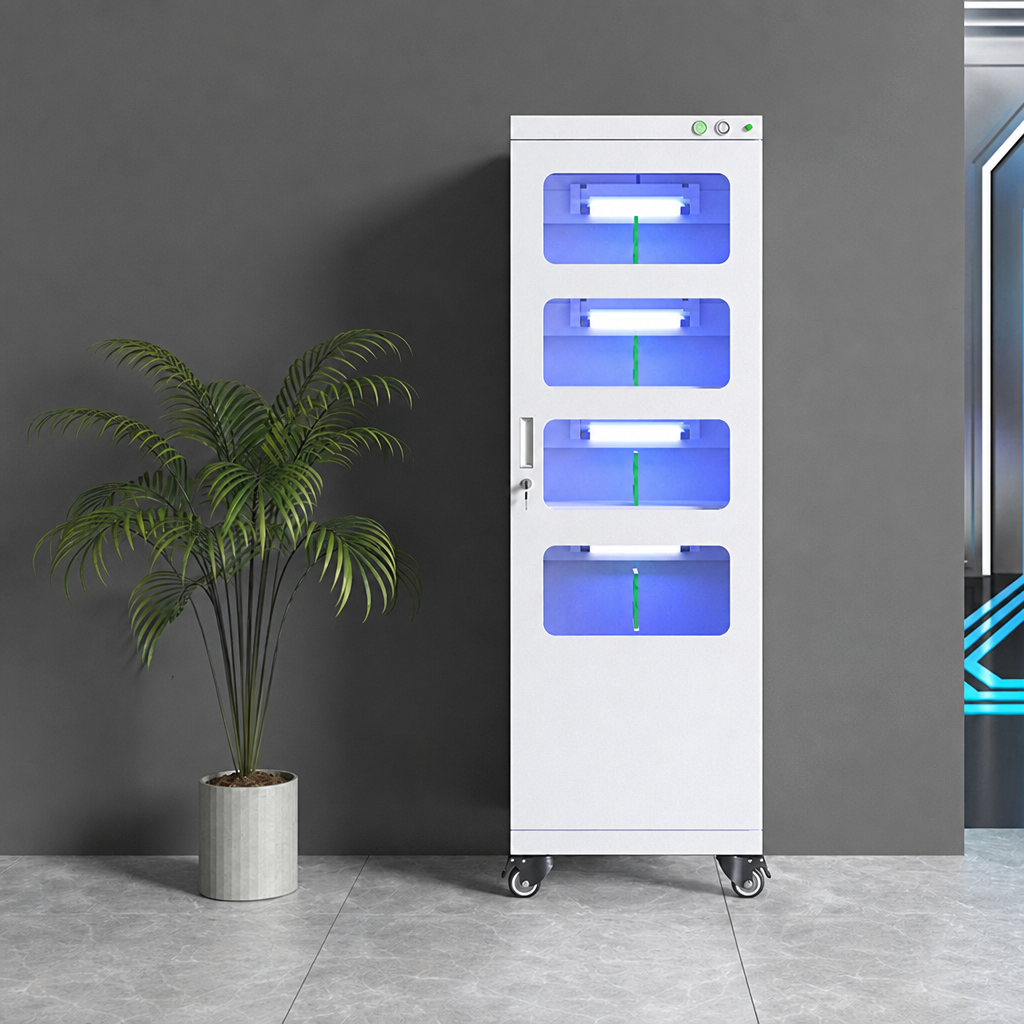

LK-VR series is an all-in-one smart charging and disinfection cabinet purpose-built for commercial VR operations. Each unit integrates a Type-C multi-protocol fast charging system, UV+Ozone dual disinfection module, and smart access control management — solving the three core pain points of VR venues: chaotic device charging, hygiene concerns, and asset loss. Tempered glass doors with LED status indicators enable managers to inspect charging and disinfection status of all bays without opening the cabinet. 360° casters support flexible on-site mobility. The full series offers 5 capacity options from 8 to 24 bays, covering deployment needs from small experience booths to large-scale VR esports arenas.
Built-in UV lamps and ozone generation module for 360° full-coverage disinfection. UV light penetrates the VR headset facial interface to inactivate bacteria and viruses, while ozone permeates deep into foam padding and crevices. Automatically stops after each disinfection cycle — no manual intervention needed.
Each bay features an independent Type-C charging port supporting PD3.0, QC4.0/3.0/2.0, AFC, FCP, SCP, SFCP, and other mainstream fast-charging protocols. Intelligently recognizes devices and matches optimal power with independent per-port control.
Supports facial recognition, password, and IC card access. Each staff member or member can be assigned a unique IC card for traceable access records. Administrators can remotely view bay occupancy status and charging progress.
3C-certified tempered glass door enables visual inspection of charging status, disinfection status, and LED indicators without opening. Balances security with visual management — more impact-resistant than acrylic doors.
Each bay has independent ventilation slots, and the cabinet top houses a silent exhaust fan. Active cooling during charging and disinfection heat generation to prevent device overheating and damage.
360° swivel casters (with brakes) at the base enable flexible movement and deployment within VR venues. Lockable casters ensure stability and safety when the unit is positioned for use.
Automatically stops charging when device is full, with LED indicator switching from red to green. Prevents battery overcharge, extends VR headset battery life, and reduces operational charging safety risks.
Applications
For centralized equipment management in competition zones — one-touch disinfection for player hygiene, fast charging for high turnover operations.
For unified headset storage and disinfection in experience zones — card-based self-service access improves operational efficiency.
For batch management of theater-grade headsets and quick charging/disinfection between screenings.
For unified VR device management in schools and corporate training centers. Students check out via card before class, return with automatic disinfection after class.
For device display, charging, and hygiene assurance in brand experience stores — building customer trust and experience quality.
Technical Specifications
| Models | LK-VR8 / VR12 / VR16 / VR20 / VR24 |
| Capacity | 8 / 12 / 16 / 20 / 24 bays |
| Dimensions (W×D×H) | VR8: 340×350×980mm; VR12: 695×350×980mm; VR16: 1050×350×980mm; VR20: 1050×350×1330mm; VR24: 1050×350×1700mm |
| Charging Port | Independent Type-C fast-charging port per bay |
| Charging Protocols | PD3.0 / QC4.0 / QC3.0 / QC2.0 / AFC / FCP / SCP / SFCP |
| Charging Control | Multi-port independent control, auto power-off when full |
| Disinfection | UV-C + Ozone dual disinfection |
| Disinfection Control | Independent disinfection switch, timed/manual mode, auto-stop upon completion |
| Input Power | AC 100-240V, 50/60Hz (wide voltage, global use) |
| Access Methods | Facial recognition / Password / IC card |
| Body Material | Aluminum alloy frame + cold-rolled steel (electrostatic powder coating) |
| Door Material | 3C-certified tempered glass door |
| LED Indicators | Red = charging / Green = standby/full |
| Cooling | Per-bay ventilation slots + top silent exhaust fan |
| Mobility | 360° swivel casters (with brake lock) |
| Safety Protection | Overload, short-circuit, leakage protection, auto power-off |
| Compatible Devices | Quest 3/Pro, Pico 4/Ultra/3, HTC VIVE, PS VR2, and mainstream VR headsets |
| Warranty | 3-year body structure, 1-year electronics, 6-month UV lamp (consumable) |
Product Structure and Details

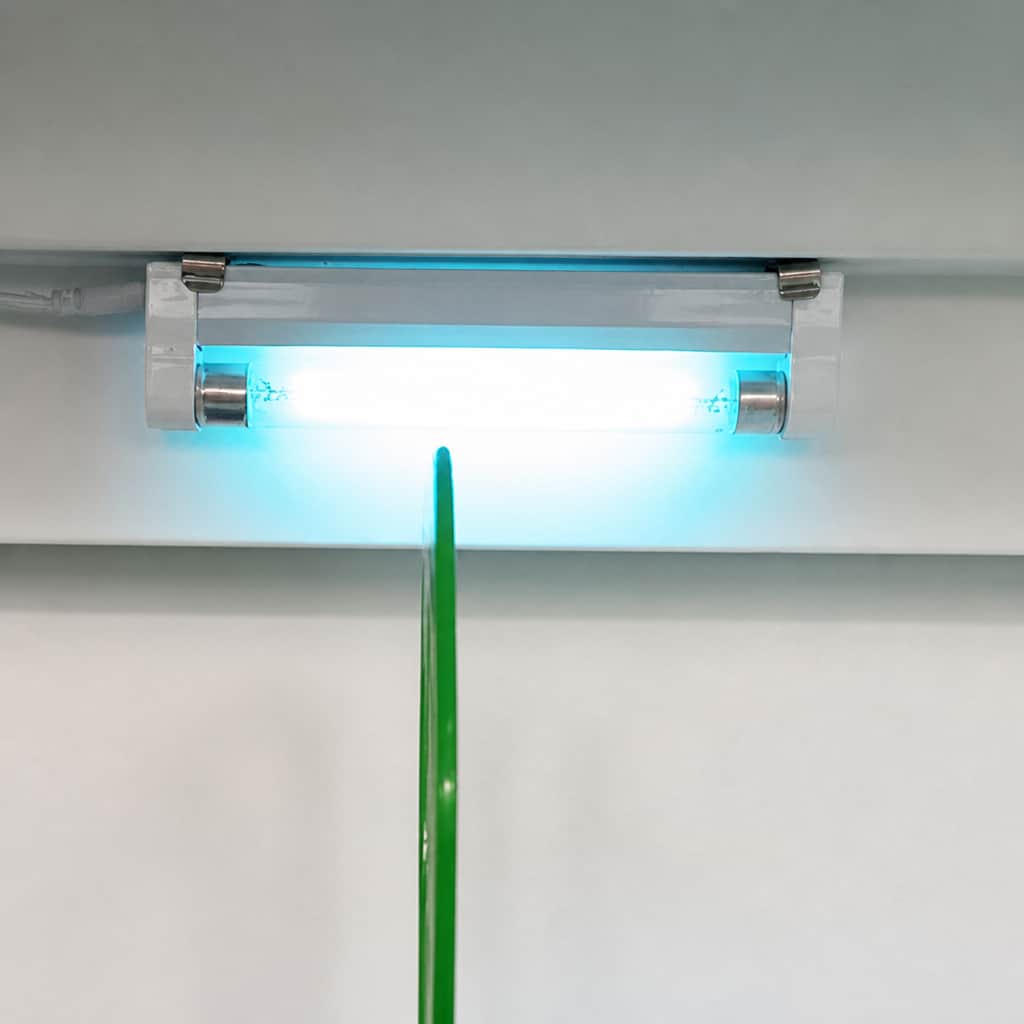

360° all-round disinfection, no blind spots Kills 99.9% of bacteria fast.

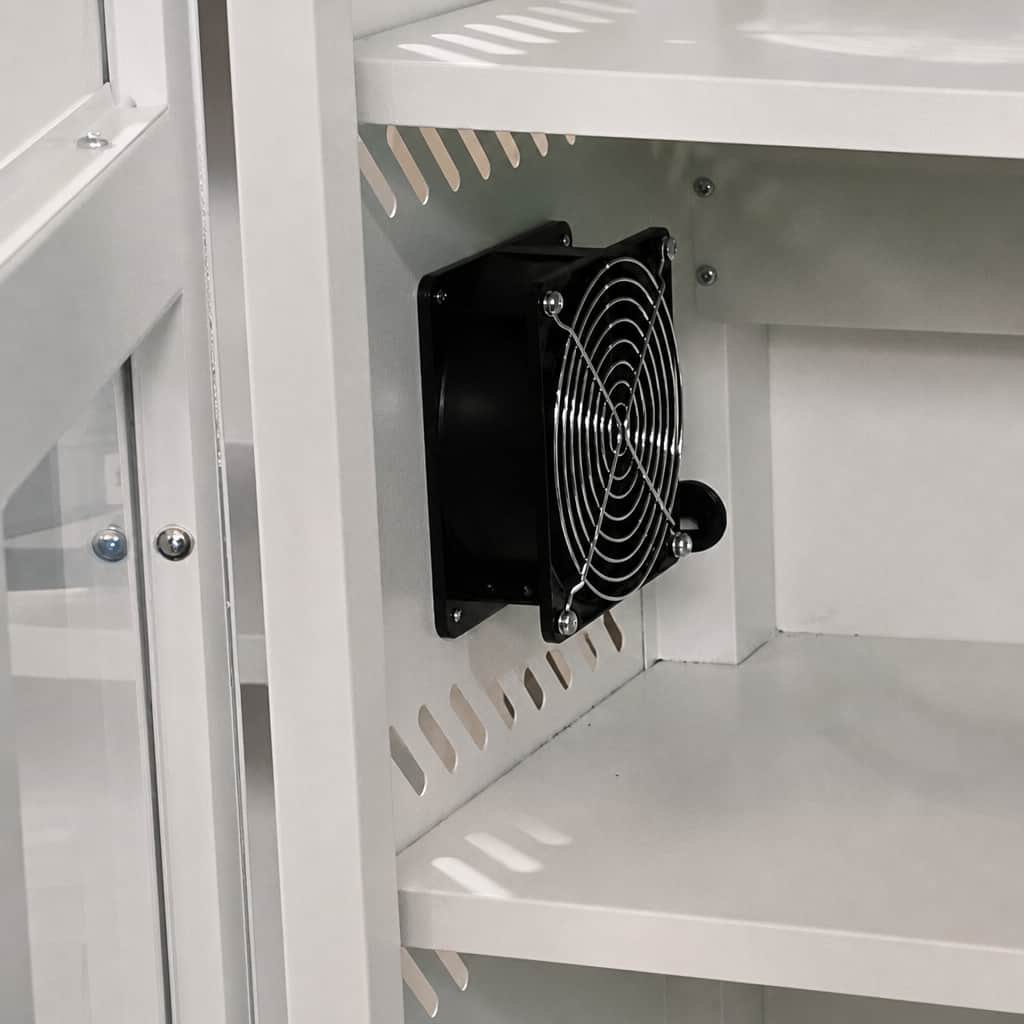

Rapidly dissipates internal heat Helps extend the service life of stored items.

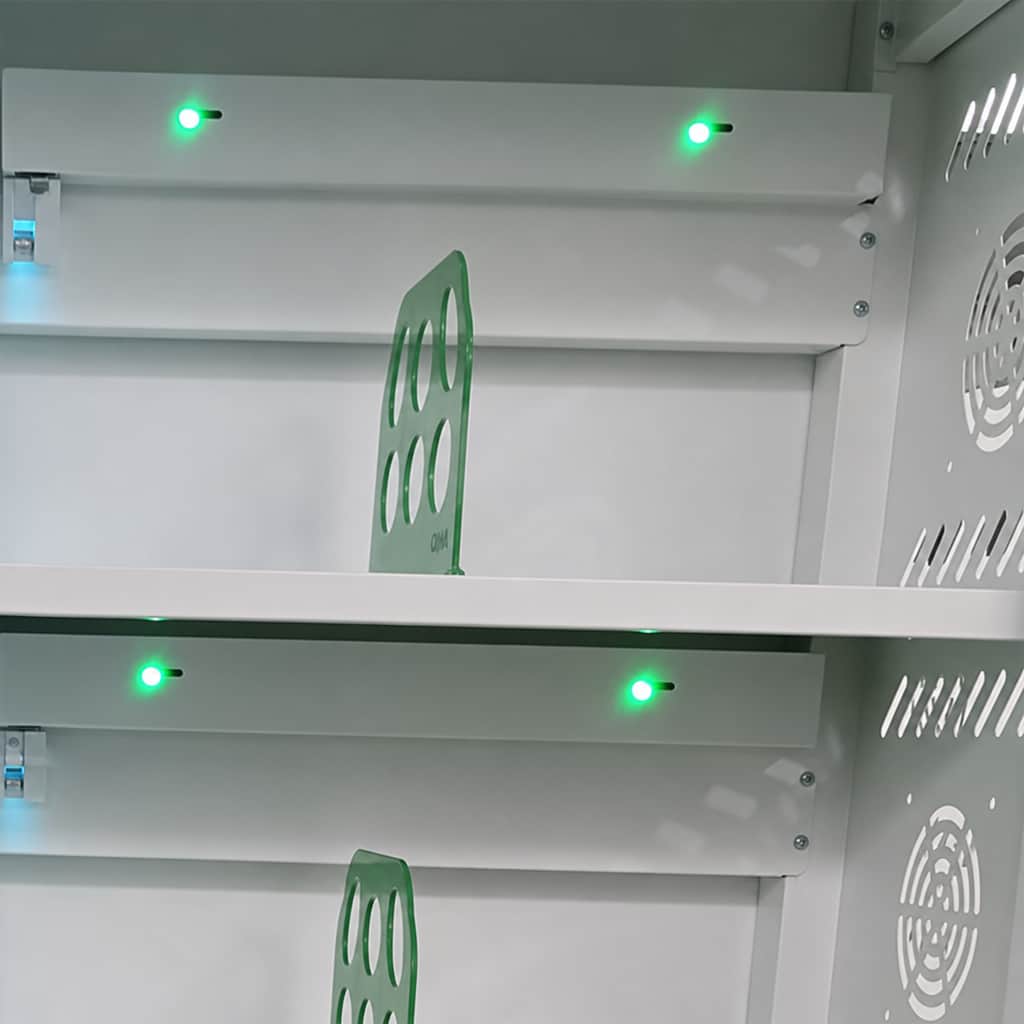

Red while charging,Green when fully charged.
● Overload Protection: When total charging load exceeds the safe range, the system automatically limits current to reduce circuit and device risks.
● Short-Circuit Protection: Independent short-circuit protection per charging port — a single port anomaly does not affect other bays.
● Leakage Protection: Metal body equipped with leakage protection device, suitable for high-frequency use in public venues.
● Auto Power-Off: Automatically stops charging when device is full, preventing safety hazards from overcharge such as overheating and swelling.
● Disinfection Safety Lock: Cabinet door automatically locks during disinfection to prevent UV leakage and ozone escape. Auto-unlocks upon completion.
● Flame-Retardant Materials: Interior lining and dividers use flame-retardant-grade materials for enhanced fire safety.
● Ozone Safety Design: Ozone generation controlled within safe limits. After disinfection, the system auto-ventilates to decompose residual ozone — concentration drops to safe levels before the door can be opened.
Device Compatibility
Compatible with Quest 2, Quest 3, Quest Pro, and subsequent USB-C charging models.
Compatible with Pico 3, Pico 4, Pico 4 Ultra, and subsequent models.
Compatible with VIVE XR Elite, VIVE Focus 3, and other standalone models with USB-C charging. Tethered headsets — please confirm separately.
Supports PS VR2 headset charging. Bay dimensions accommodate the headset halo design.
Automatically recognizes PD3.0, QC4.0/3.0/2.0, AFC, FCP, SCP, SFCP, and other protocols — covering mainstream brand fast-charging standards.
Before bulk purchase, provide a list of VR headset models in use to confirm full compatibility of bay dimensions and charging protocols.
OEM/ODM Customization Options
Supports silk-screen, laser engraving on body, and logo printing on tempered glass door.
Body and bay panel colors customizable per brand VI (MOQ applies, please inquire).
Outer carton printing, branding, and manual customization available for OEM.
Bay interior lining dimensions and shape can be customized for unique VR headset form factors.
Standard triple access (face + password + IC card). Other access solutions customizable per project.
Default power plug matches target market standard (US/EU/UK/AU).
● Packaging Method: Reinforced wooden crate packaging with shock-absorbing foam to ensure safe transport of the VR disinfection cabinet.
● Package Contents: LK-VR cabinet body ×1, power cord ×1, IC access cards ×2, spare keys ×2, user manual ×1.
● Sample Shipping: Samples typically ship within 7-14 business days via logistics (not small-parcel courier). Subject to stock and customization.
● Bulk Shipment: Small trial orders and large project shipments supported. Lead time confirmed per order volume and customization complexity.
● MOQ: MOQ for standard models — please inquire. Small trial orders supported.
● Shipping Note: VR disinfection cabinets are large equipment — please confirm unloading conditions and access routes at the delivery address in advance.
● Data to Confirm: To be added: per-model package dimensions, gross/net weight, container quantity, sea/air shipping suggestions.
Recommended Accessories
USB-C short cable (0.5m): customized length with E-Mark certified chip.
Smart PDU with configurable options to meet different needs, making the charging cart more feature-rich.
Optional items can include power cord, spare keys, numbering labels, cable clips, spare casters, and manual kits according to project needs.
