An 8-slot smart charging storage locker for schools, enterprises, libraries, and public spaces — integrating facial recognition, password, and IC card access control to support one-stop charging and secure storage for laptops, tablets, and phones. Wall- design suitable for corridors, classrooms, and offices with limited floor space.
Devices: Laptops under 15.6", tablets, smartphones of all major brands, and USB-charged devices.
LK-CL-8 is a compact 8-slot smart charging storage locker that combines device charging with secure storage. Each tier features an independent AC power outlet, USB-C fast-charging port, and USB-A port — compatible with mainstream laptop, tablet, and phone brands. Supports facial recognition, password, and IC card access for self-service device management in schools, enterprises, libraries, and similar environments. The 8-slot model supports mounting to save floor space.
Supports facial recognition, password, and IC card — three access methods to suit different security levels and user preferences. No key management needed; enables self-service device access.
Each tier has independent AC outlet + USB-C (5-20V/3.5A adaptive fast charge) + USB-A (5V/2.4A) — one locker covers all charging needs for laptops, tablets, and phones.
8 independent tiers for one-to-one management — prevents device stacking and scratching, supports numbered management and quick location.
The 8-slot model supports mounting, compact 8-slot design suitable for classrooms, corridors, and office areas with limited space.
Front door with transparent viewing window enables visual inspection of device status and LED indicator changes without opening.
Cabinet body uses high-grade aluminum alloy and quality cold-rolled steel (1.0-2.0mm thickness) with electrostatic powder coating — balancing lightweight design and structural stability.
Each tier has an LED indicator: green = standby/full charge, red = charging. At-a-glance status for every compartment.
Applications
For centralized tablet/laptop storage and charging in classrooms or corridors, supporting student self-service card access.
For shared device pool management — employees self-service access meeting tablets, presentation devices, or mobile terminals.
For device lending and charging services in public reading areas with patron self-service.
For trainee device storage — deposit before class, retrieve after class.
Technical Specifications
| Capacity | 8 slots (independent charging and storage for 8 devices) |
| Charging Ports | 3 per tier: AC outlet + USB-C + USB-A |
| USB-C Output | DC 5-20V, 3.5A Max (adaptive fast charge) |
| USB-A Output | DC 5V, 2.4A Max |
| AC Output | AC 110/230V, 50/60Hz, 15A |
| Input Power | AC 110/230V, 50/60Hz, 15A (wide voltage) |
| Dimensions | 588×450×825mm (W × D × H) |
| Weight | 40kg |
| Compatible Devices | Laptops, tablets, and phones under 15.6 inches or smaller |
| Body Material | High-grade aluminum alloy + cold-rolled steel (1.0-2.0mm), electrostatic powder coating |
| Access Methods | Facial recognition / Password / IC card |
| Door Design | Pop-open front door with transparent viewing window |
| LED Indicator | Green = standby/full, Red = charging |
| Safety Devices | Circuit breaker, fuse, AC port short-circuit protection |
| Installation | Floor-standing |
| Base Support | 4 rubber shock-absorbing foot pads |
| Warranty | 3-year warranty for body structure, 1-year for electronic components |
Product Structure and Details

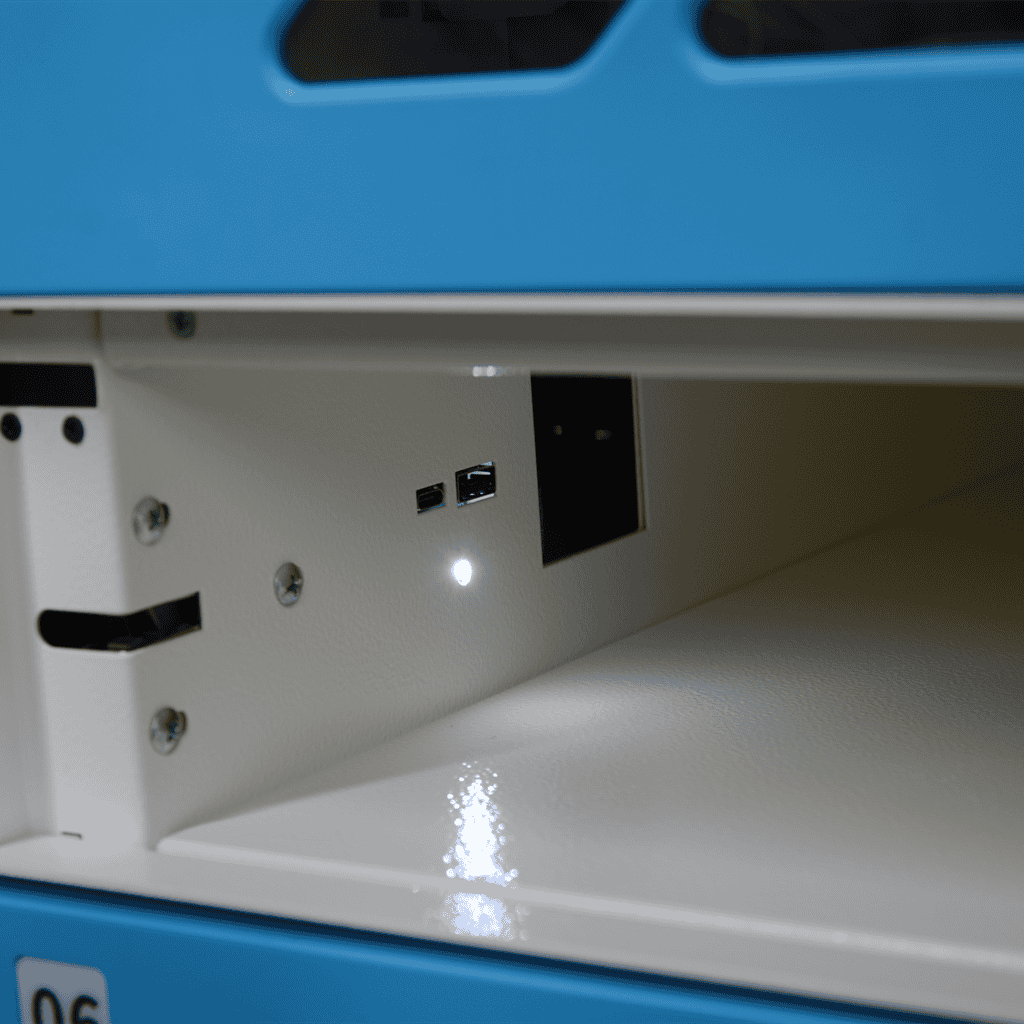

Supports USB-A, Type-C and direct charging.

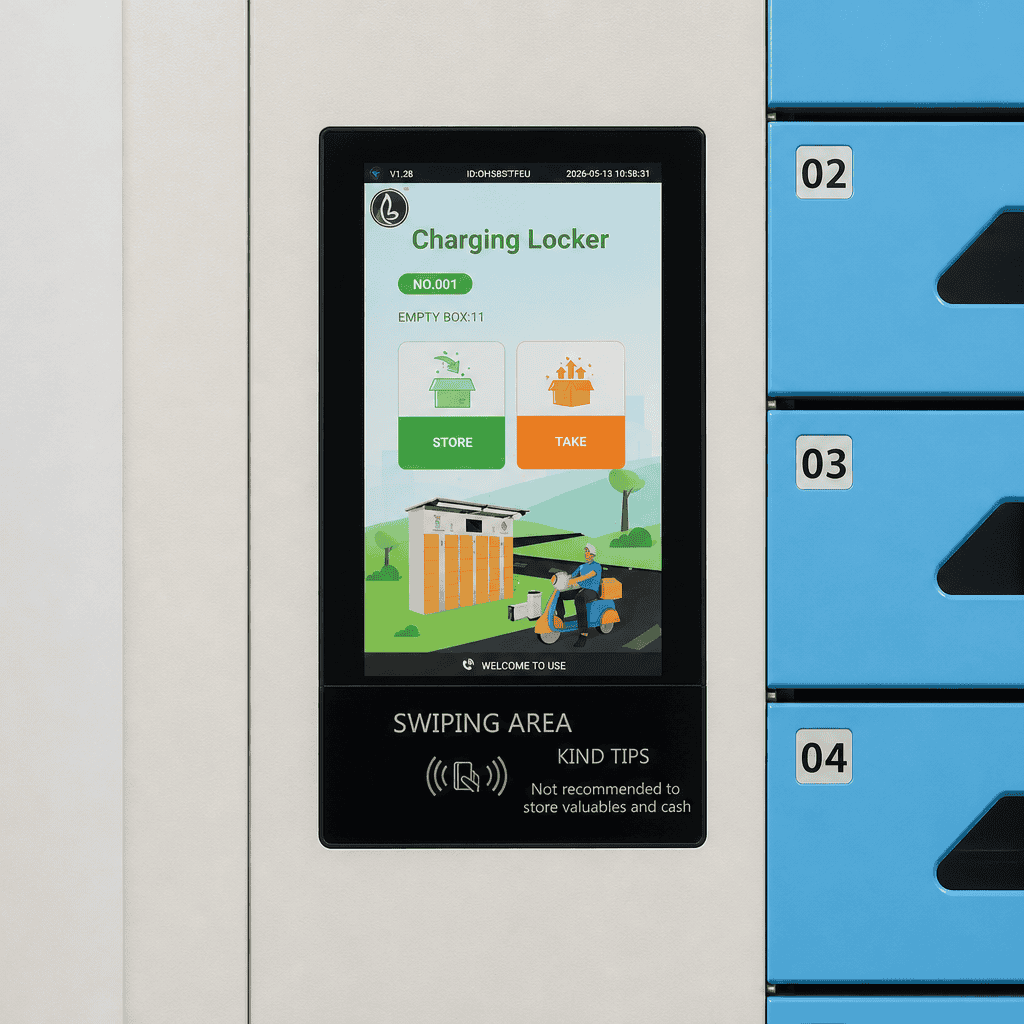

Convenient, secure access by password or swipe card.

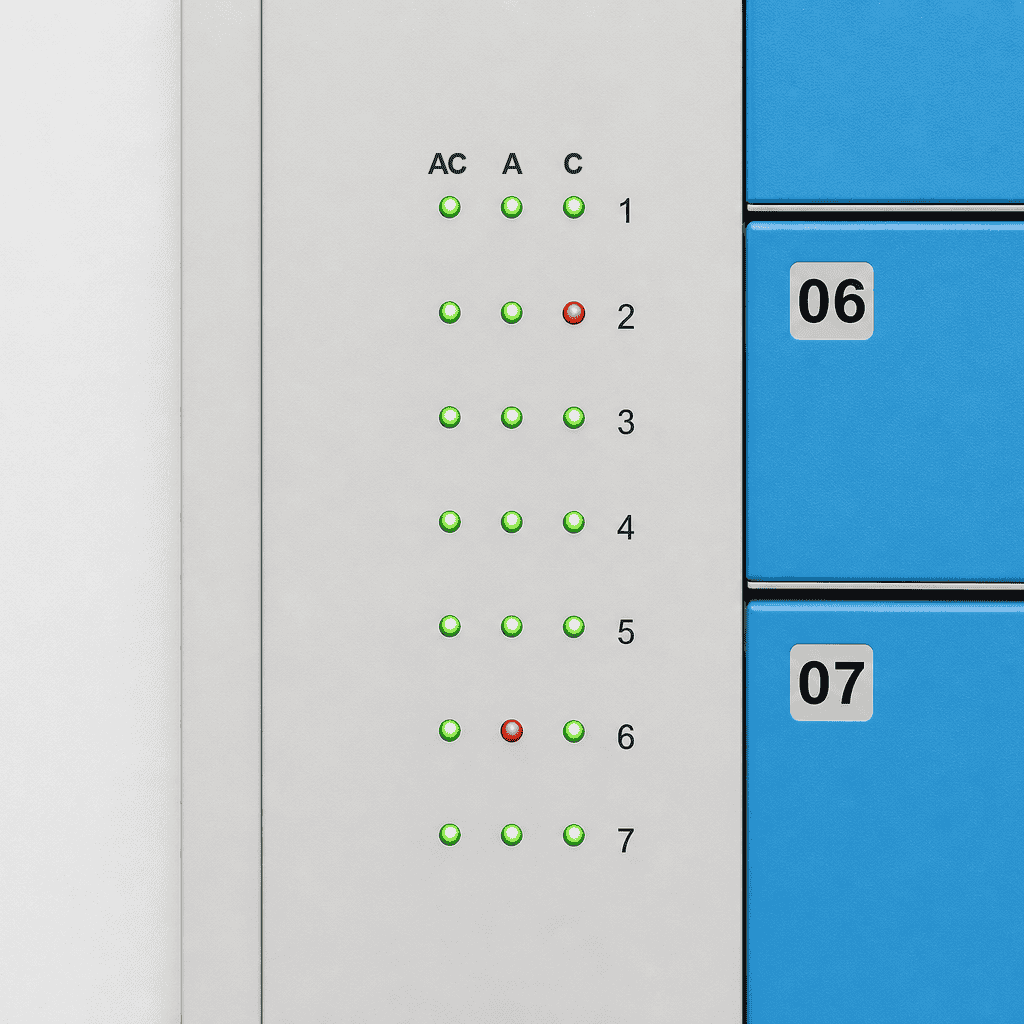

See in real time which compartments are in use.
● Circuit Breaker: Built-in circuit breaker automatically cuts off power during abnormal current overload to prevent circuit damage.
● Fuse Protection: Equipped with fuse as secondary protection — blows under extreme conditions such as short circuits.
● AC Port Short-Circuit Protection: Each AC outlet has built-in short-circuit protection to reduce device charging risks.
● LED Status Monitoring: Each tier has independent LED indicator (green=standby/full, red=charging) for immediate anomaly detection.
● Flame-Retardant Materials: Body constructed with flame-retardant-grade materials to enhance overall fire safety.
● Low-Voltage USB Output: USB-A and USB-C ports output within safe low-voltage range, reducing electric shock risks.
Device Compatibility
Supports laptops under 15.6" of all major brands, charging via AC outlet or USB-C.
Compatible with iPad, Samsung Galaxy Tab, Huawei MatePad, and other tablets via USB-C/USB-A charging.
Supports iPhone (Lightning/USB-C) and all Android brand phones via USB charging.
USB-C supports PD fast-charging protocol with adaptive 5-20V output. USB-A supports 5V/2.4A standard fast charge.
Before bulk purchase, confirm actual device dimensions and charging port types to ensure tier space and port compatibility.
OEM/ODM Customization Options
Supports silk-screen or laser-engraved logo on body, plus branded packaging customization.
Body and door panel colors can be customized per project requirements (MOQ applies, please inquire).
Outer carton printing and labeling customization available for OEM branding and channel distribution.
Standard triple access (face + password + IC card). Please inquire for special requirements.
● Packaging Method: Single-unit wooden crate or reinforced carton packaging for transport safety. Outer printing customizable per OEM.
● Package Contents: LK-CL-8 charging locker body ×1, power cord ×1, spare keys ×2, user manual ×1.
● Sample Shipping: Samples typically ship within 7-14 business days, subject to stock and customization requirements.
● Bulk Shipment: Small trial orders and large project shipments supported; lead time confirmed based on order volume.
● MOQ: MOQ for standard models — please inquire. Small trial orders supported.
● Data to Confirm: To be added: package dimensions, gross/net weight, container quantity, shipping suggestions.
Recommended Accessories
USB-C short cable (0.5m): customized length with E-Mark certified chip.
Smart PDU with configurable options to meet different needs, making the charging cart more feature-rich.
Optional items can include power cord, spare keys, numbering labels, cable clips, spare casters, and manual kits according to project needs.
