A 30-slot dual-tier centralized phone charging and secure storage solution for school grade-level groups, corporate departments, large retail stores, and public service institutions — balancing capacity with space efficiency.
Devices: Smartphones, small power banks, and USB-charged devices under 8 inches.

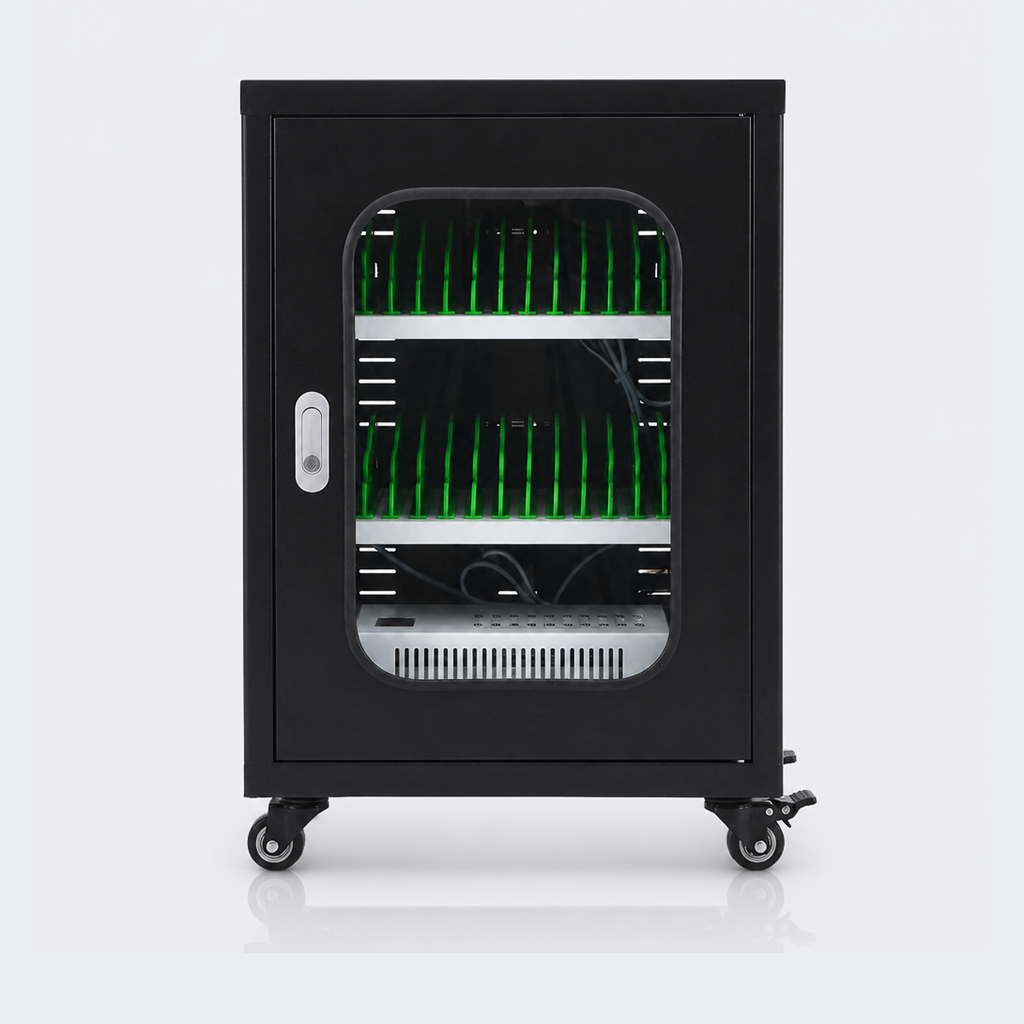

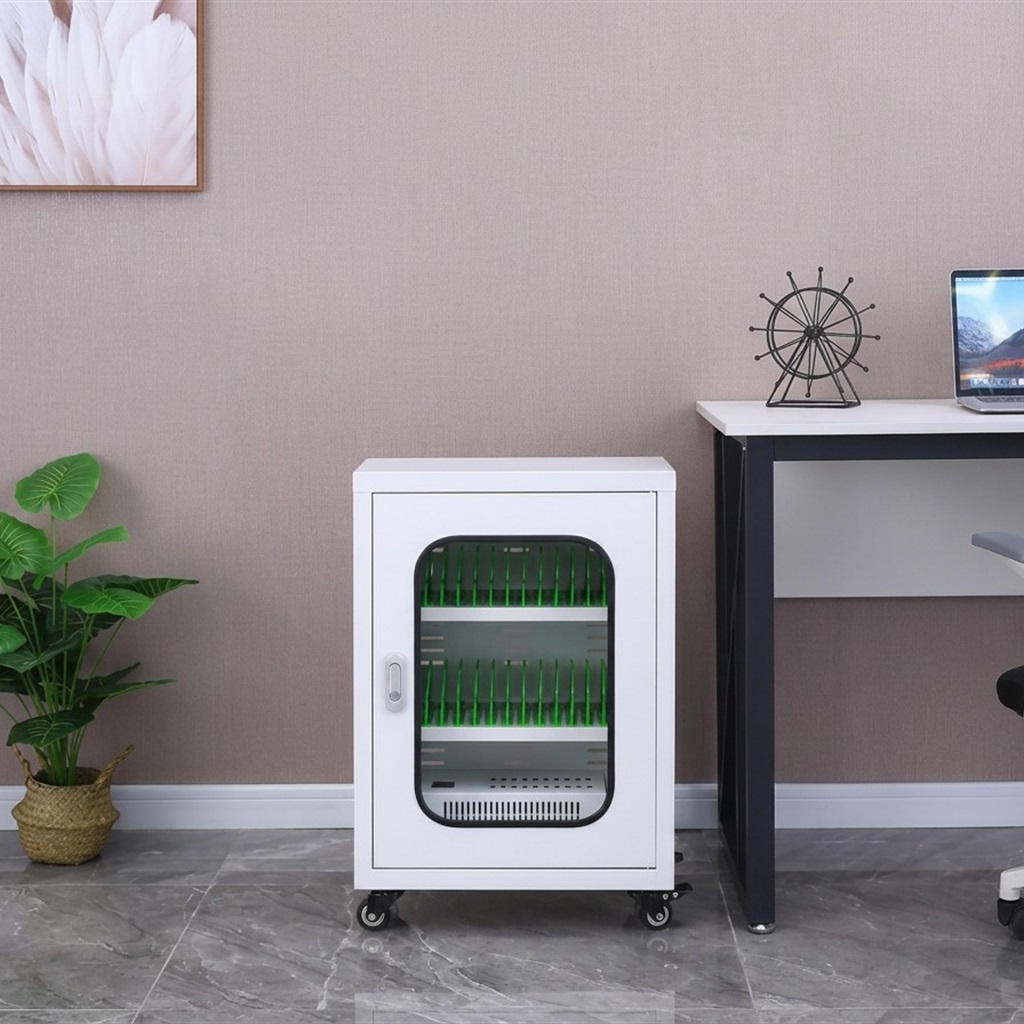

LK-PH30 marks the transition from desktop-class to floor-standing capacity in the charging locker series. The dual-tier structure achieves 30 independent slots within just 610mm of height, balancing space efficiency with operational convenience. Each tier features an independent USB charging module with a total output of 300W. The tempered glass door replaces acrylic for enhanced security and durability. Suitable for classrooms, offices, and back-office areas that need higher capacity within limited space — can be placed on desks, countertops, or dedicated stands.
2-tier structure achieves 30 slots within a compact height of 610×460×270mm, balancing high density with daily operational convenience.
Each tier features an independent USB charging module with 300W total output — supports full-load simultaneous fast charging for all 30 devices.
Made of cold-rolled steel with electrostatic powder coating — built for long-term high-frequency use in schools and institutions.
Transparent glass door allows device status inspection without opening — more scratch and impact resistant than acrylic, paired with key lock for asset security.
Each slot individually separated by ABS flame-retardant engineering plastic dividers — prevents collision and scratching, supports numbered management.
Side ventilation slot design promotes air convection, reducing internal temperature during extended operation and extending charging module lifespan.
Applications
For grade-level teacher offices to centrally manage student phones, suitable for rotating-class or boarding school scenarios.
For departmental device management, ideal for ~30-person team meetings or daily phone storage.
For standardized staff device management in government service centers and public-facing units.
For staff break areas and shift-change device management in large stores or warehouse retail.
Technical Specifications
| Capacity | 30 slots, supporting simultaneous charging for 30 devices |
| Charging Output | 5V/2A per port (Max 10W), QC 2.0/3.0 compatible |
| Total Output | 300W |
| Input Voltage | AC 100-240V, 50/60Hz, wide-voltage input for global use |
| Dimensions | 610×460×270mm (H × W × D) |
| Slot Size | 160×22×230mm (H × W × D) |
| Compatible Devices | Smartphones under under 8 inches and small power banks |
| Body Material | Cold-rolled steel with electrostatic powder coating |
| Divider Material | ABS flame-retardant engineering plastic |
| Door Material | Tempered glass see-through door |
| Colors | Black / White (customizable) |
| Tiers | 2 tier(s) |
| Weight | 17.25 kg |
| Safety Protection | Overload, short-circuit protection, low-voltage safe output, auto power-off |
| Accessories | Power cord ×1, keys ×2 |
| Warranty | 3-year warranty for body structure, 1-year for electronic components |
Product Structure and Details
Tough ABS slots hold phones upright — better cooling, easy access.
Magnetic latch keeps the door firmly shut — no swinging from wind or bumps.
Ventilation openings improve airflow for cooler bulk charging.
● Low-Voltage Safe Output: 5V low-voltage output per port — well below the human body safety voltage threshold.
● Overload Protection: When total load exceeds the 300W safe range, the system automatically limits current.
● Short-Circuit Protection: Provides instant protection under abnormal short-circuit conditions.
● Flame-Retardant Materials: Slot dividers use ABS flame-retardant engineering plastic — resistant to ignition and flame spread.
● Auto Power-Off: Automatically stops charging when device is full, preventing overcharge and extending battery life.
● Cabinet Grounding: Metal body design supports grounding, compliant with international electrical safety standards.
Device Compatibility
Compatible with all major smartphone brands (iPhone, Samsung, Google Pixel, Xiaomi, Huawei, etc.) and small USB-charged devices.
Each slot supports up to 160×22×230mm, accommodating phones under under 8 inches and standard power banks.
Automatically recognizes QC 2.0/3.0, Apple 2.4A, Samsung AFC, BC1.2, and other protocols.
Standard-thickness cases (≤2mm) recommended. Ultra-thick or kickstand cases should be tested in advance.
Before bulk purchase, confirm actual device dimensions, case thickness, and required cable specs.
OEM/ODM Customization Options
Supports silk-screen printing and laser engraving on the body, plus branding for nameplates and packaging.
Beyond black and white, body colors can be customized per project (MOQ applies, please inquire).
Color box, white box, and outer carton labeling customization available for OEM and channel distribution.
Standard mechanical key lock; combination locks or custom key management systems available.
Default plug matches target market standard (US/EU/UK/AU). Please confirm before bulk purchase.
● Packaging Method: Single-unit independent packaging; outer carton printing customizable per OEM.
● Package Contents: LK-PH30 charging locker body ×1, power cord ×1, keys ×2, user manual ×1.
● Sample Shipping: Samples typically ship within 7-14 business days, subject to stock and customization.
● Bulk Shipment: Small trial orders and large project shipments supported; lead time per order volume.
● MOQ: MOQ 10 units for standard models; please inquire for customized models.
● Data to Confirm: To be added: package dimensions, gross/net weight, container quantity, shipping suggestions.
Recommended Accessories
USB-C short cable (0.5m): customized length with E-Mark certified chip.
Smart PDU with configurable options to meet different needs, making the charging cart more feature-rich.
Optional items can include power cord, spare keys, numbering labels, cable clips, spare casters, and manual kits according to project needs.
