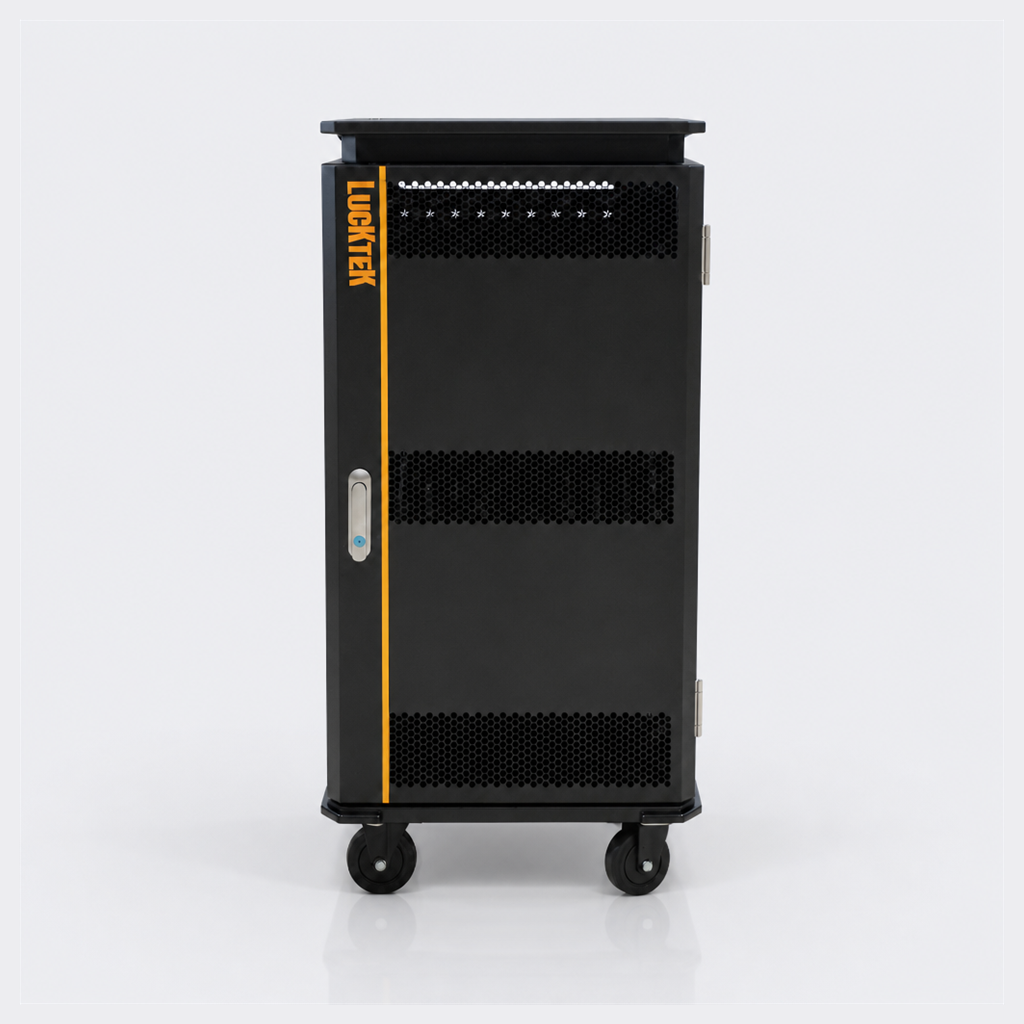

A 30-slot 3-zone AC direct-charging cabinet for K12 schools, enterprise IT departments, libraries, and tender projects — managing up to 30 laptops/tablets under 15.6\" across three zones with adapter-free AC power, 4-wheel silent mobility, and spring lock security.
Devices: Laptops/tablets under 15.6\" of all major brands (configurable slot width; models up to 16\" available).

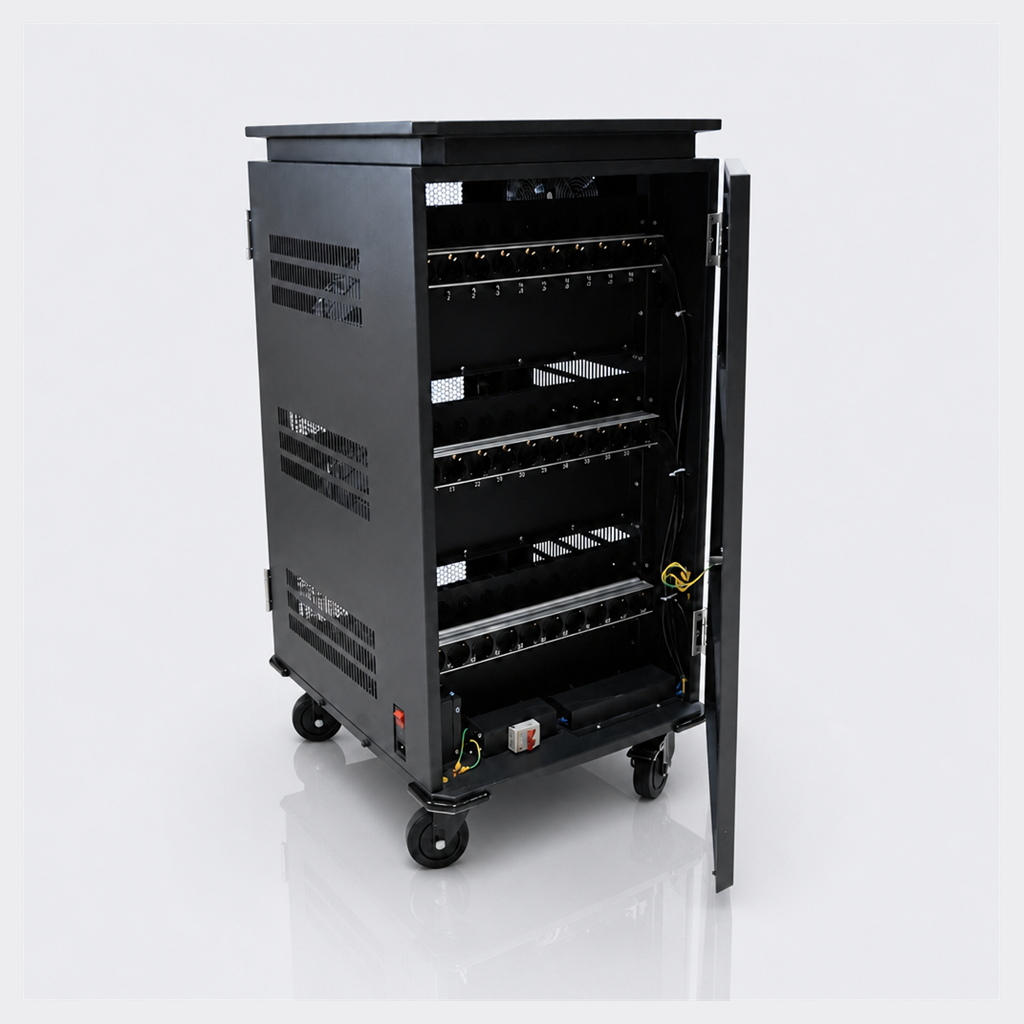

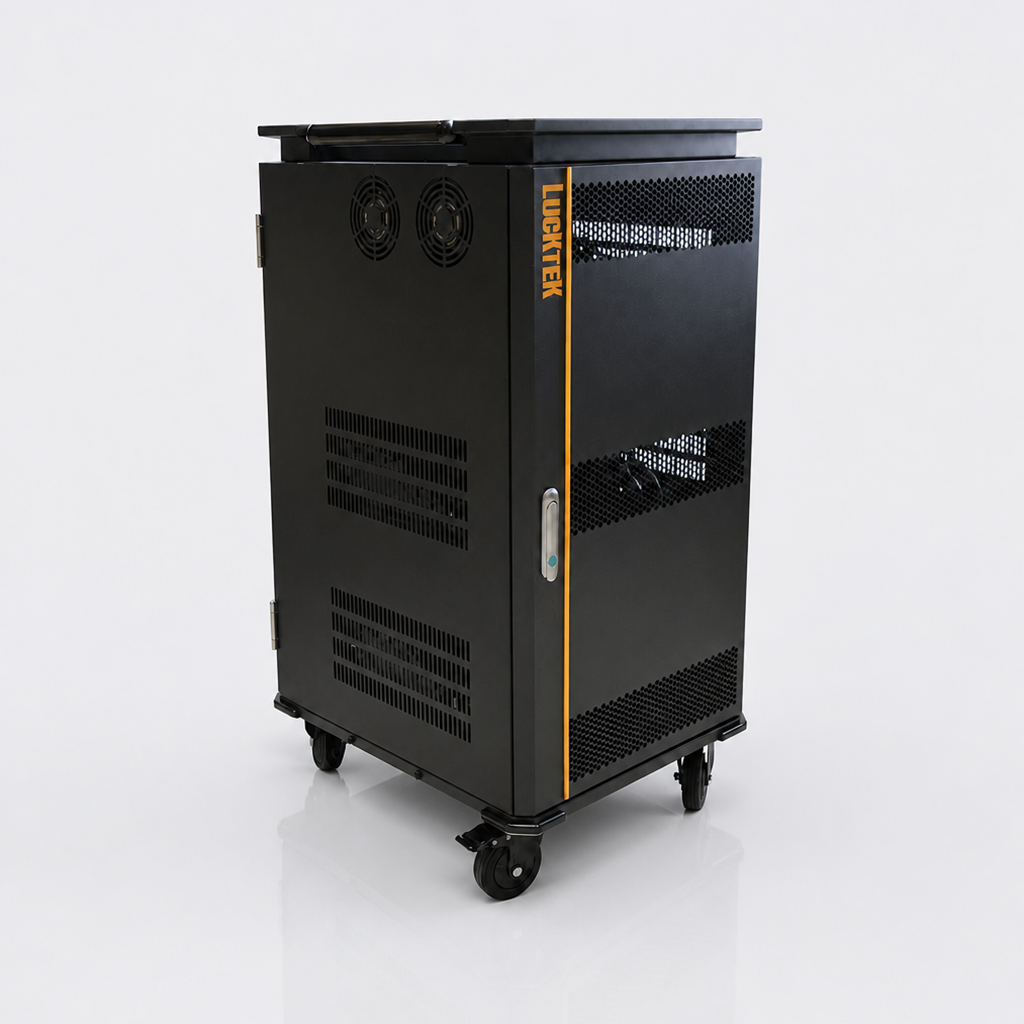

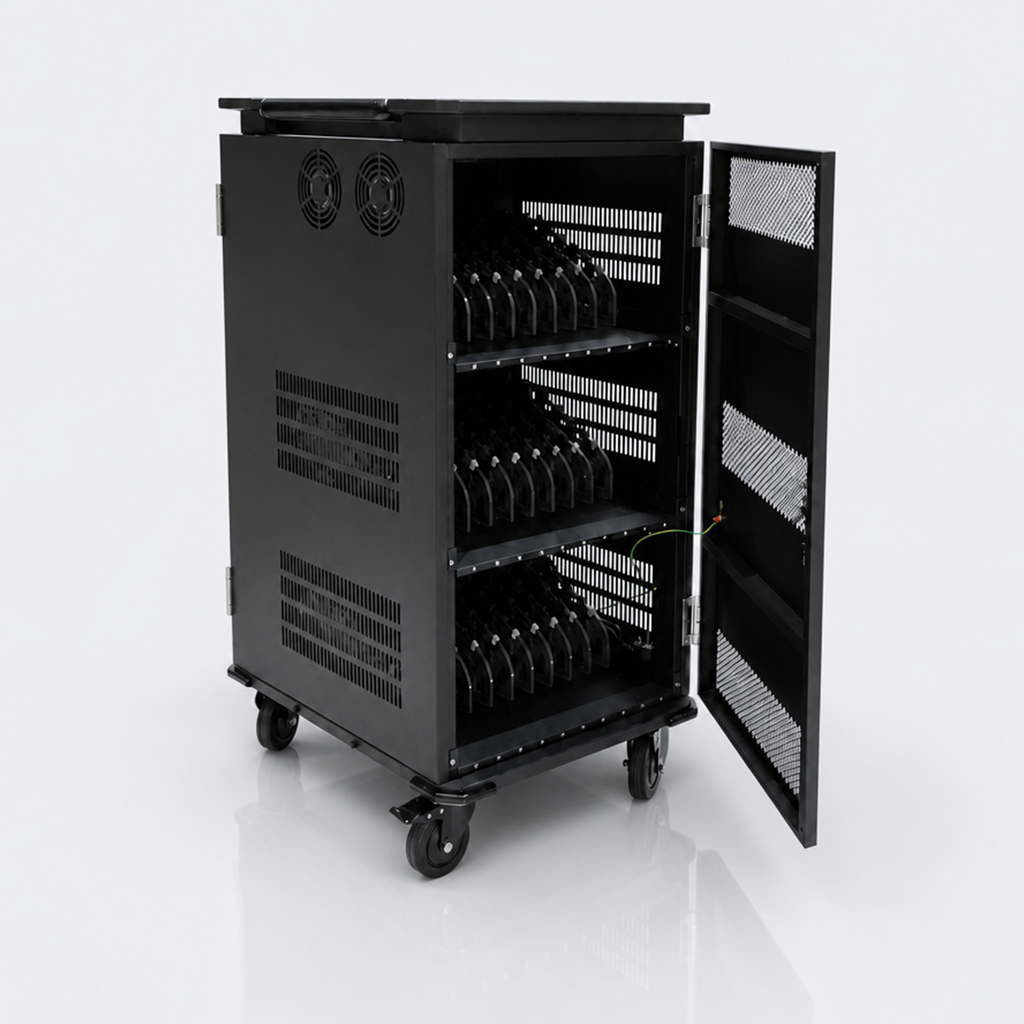

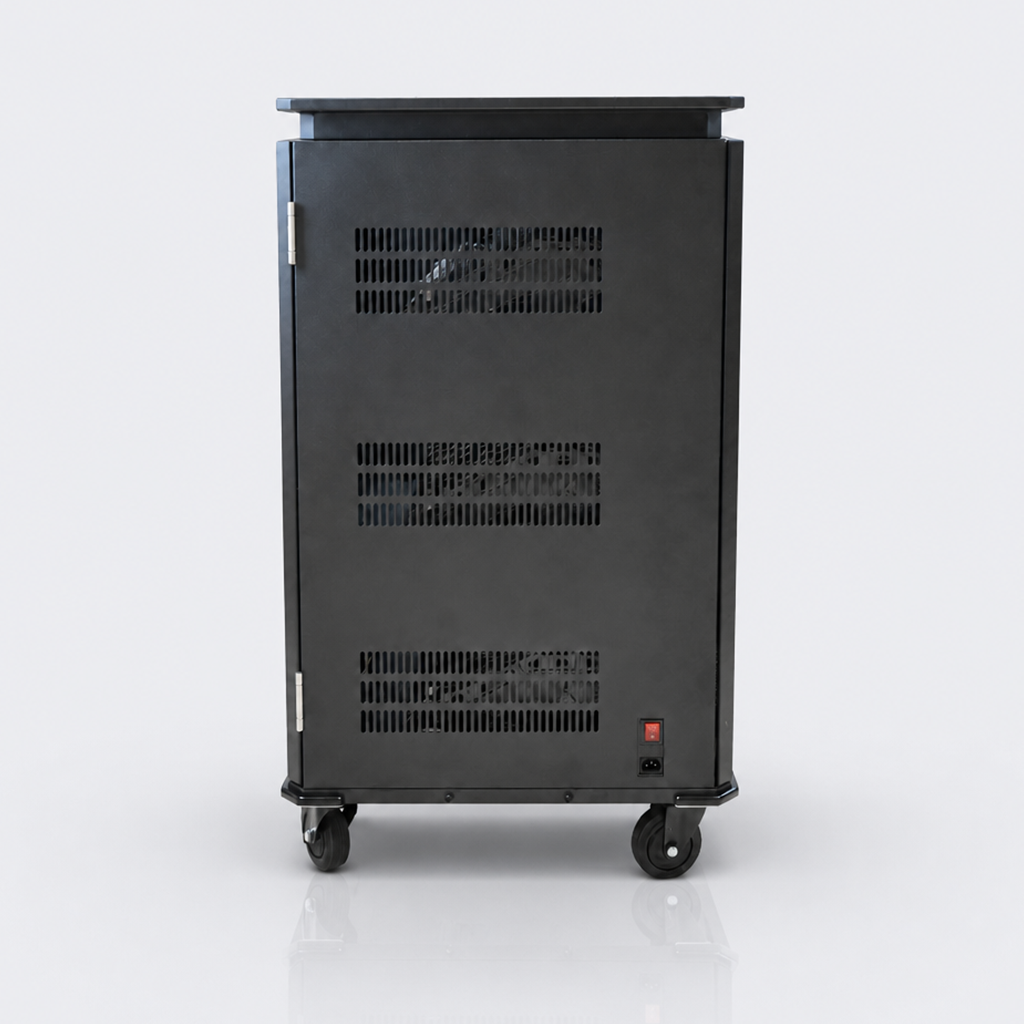

LK-CC30T65 is a 30-slot 3-zone AC direct-charging cabinet designed for medium-to-large education and enterprise environments. The cabinet is divided into three independent charging zones, supporting 30 laptops/tablets charging simultaneously. Built with European standard strong-current configuration, devices charge through their own adapters with no USB conversion needed — maximum compatibility. The black-grey metal body with four 4-inch silent casters (two with brakes) and front spring lock balances mobility and device security. CE/RoHS/EMC certified, with 100% full-load aging testing, high-voltage insulation testing, and earth continuity testing.
Three independent charging zones for 30 devices charging simultaneously — organized zone-based cable management and quick device retrieval.
EU strong-current configuration — laptops charge directly via their own adapters with no USB conversion, compatible with all laptop brands.
Four 4-inch silent casters, two with brakes — smooth quiet movement indoors and firm positioning when locked.
Front spring lock, tested for 50,000+ open/close cycles, effectively preventing unauthorized device access.
Four-fold charging protection: over-voltage, over-current, short-circuit, over-temperature; 100% full-load aging, high-voltage insulation, and earth continuity tests.
Customizable: bay capacity, slot width, interface (USB-A/USB-C PD/AC/Sync & Charge), lock type (key/PIN/RFID), color, logo, plug standard (US/EU/UK/AU), internal structure, and packaging.
Applications
For centralized laptop/tablet charging and management in computer labs, libraries, and device management rooms.
For enterprise IT teams managing training devices, meeting equipment, and shared mobile device pools.
Suitable for education technology and smart campus tenders requiring certification documents and bulk supply.
For shared workspaces and libraries providing secure, convenient device charging for visitors.
Technical Specifications
| Capacity | 30 slots (simultaneous charging for 30 devices) |
| Charging Type | AC direct charging (EU standard, no adapters/USB conversion needed) |
| Dimensions | 505 x 600 x 926 mm |
| Material | SPCC cold-rolled steel + electrostatic powder coating |
| Color | Black-Grey |
| Wheels | 4× 4-inch silent casters, 2 with brakes |
| Lock | Front door spring lock (50,000+ cycles tested) |
| Safety | Over-voltage, over-current, short-circuit, over-temperature protection; aging, insulation, and continuity tests |
| Compatibility | Laptops/tablets under 15.6\" (configurable; up to 16\" available) |
| Printing | Digital Printing |
| Application | Office / School Multimedia Machine |
| Warranty | Lucktech after-sales support; modular cables individually replaceable |
Product Structure and Details

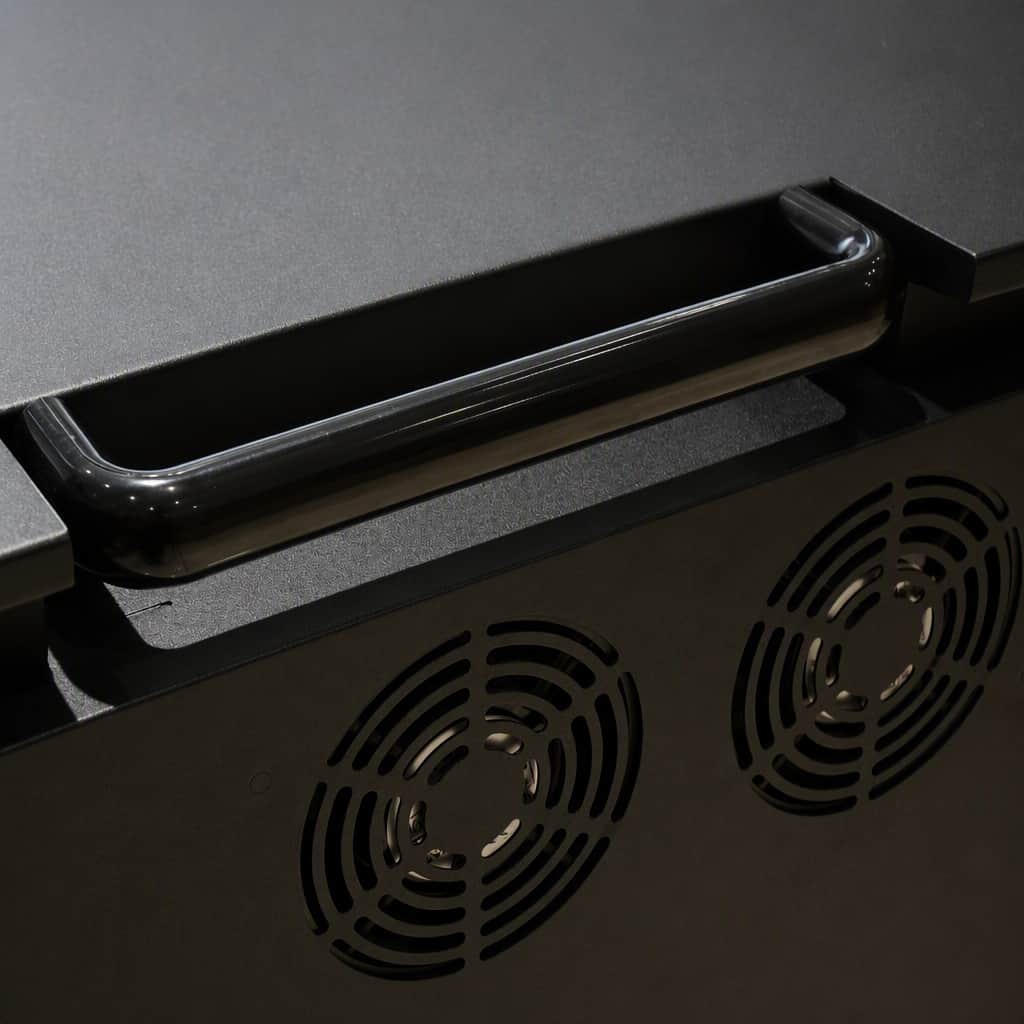

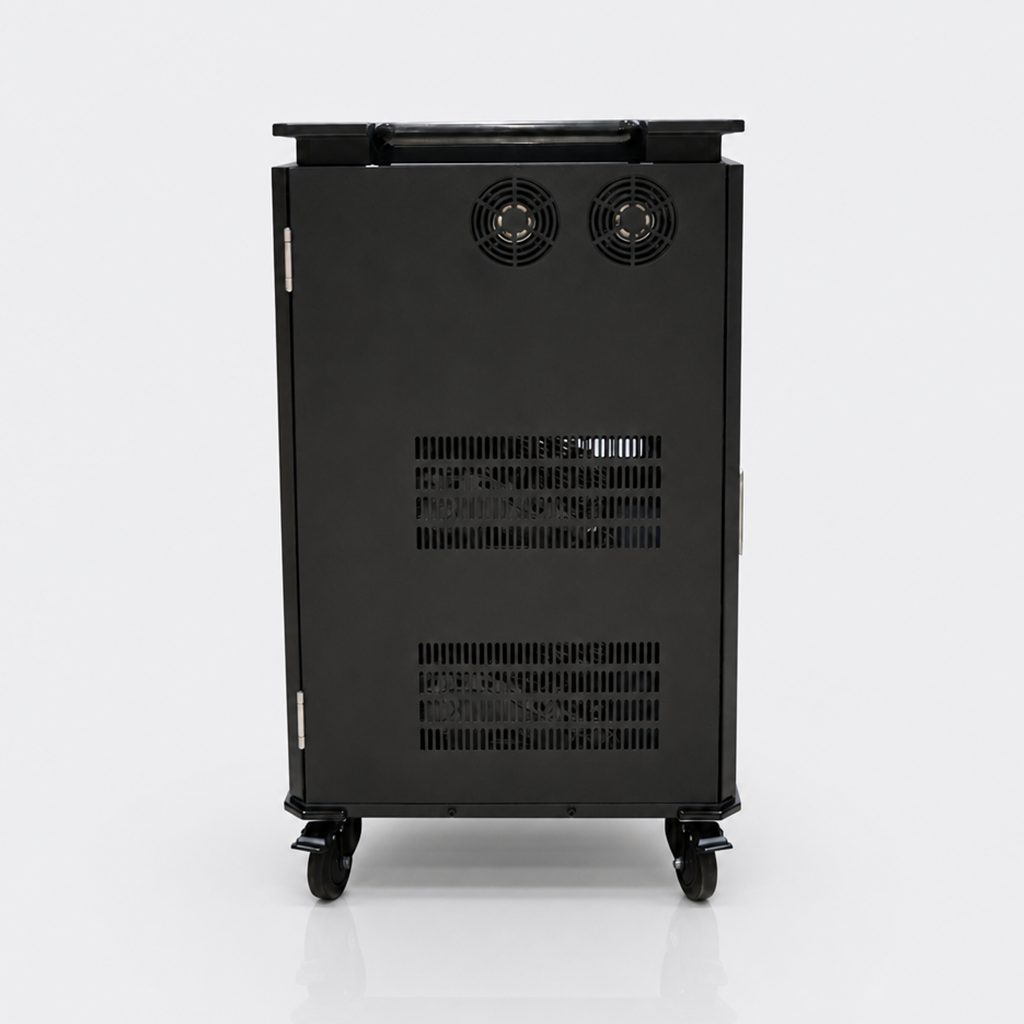

A fan is fitted to ensure heat dissipation inside the cabinet..

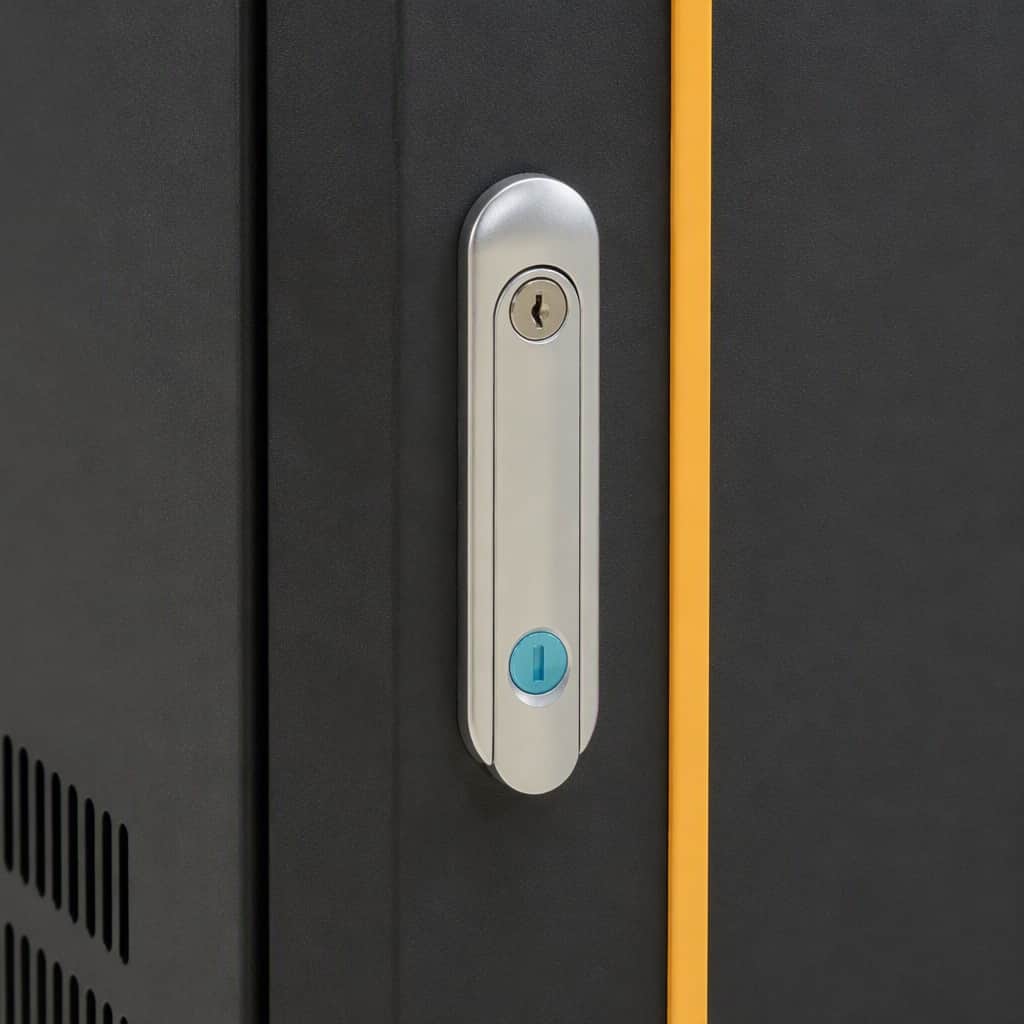

A range of lock types is available, combining convenient operation with security.

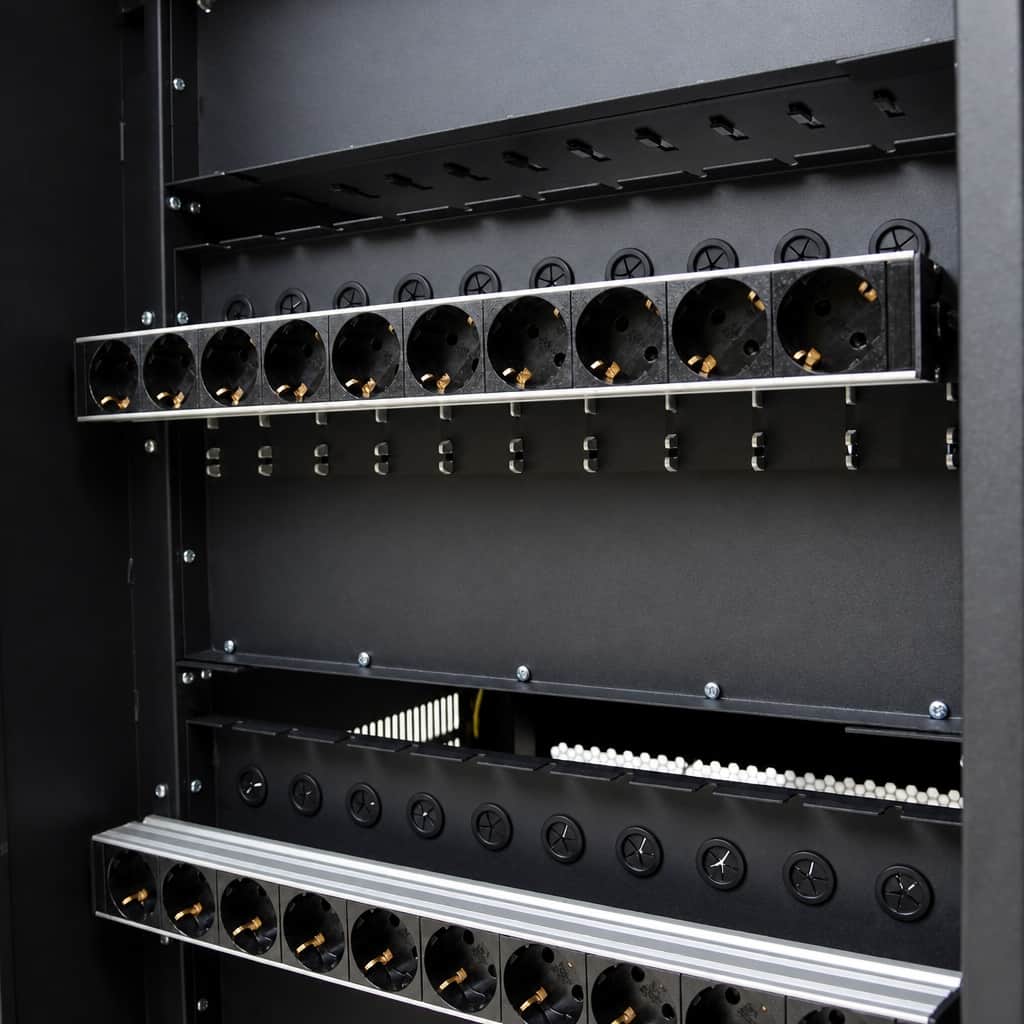

Supports charging devices directly from AC power.

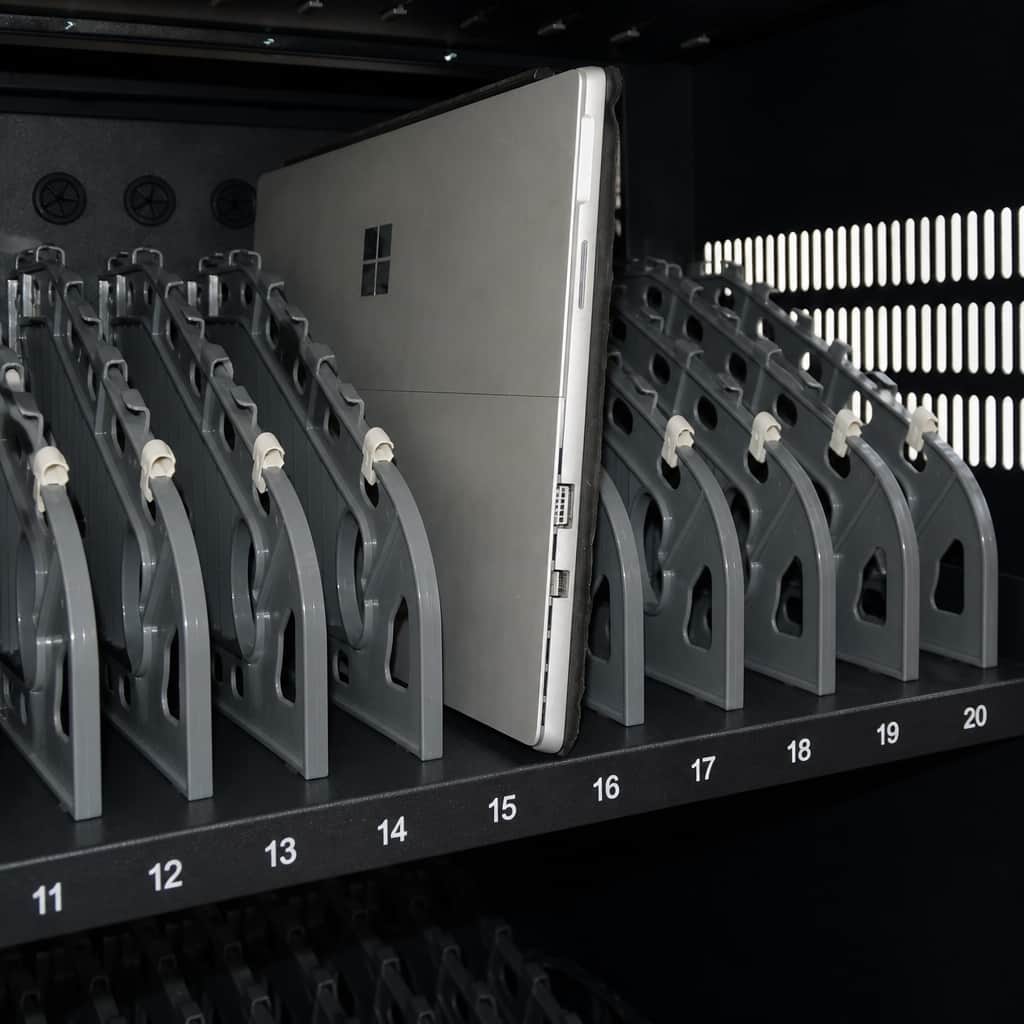

Independent compartments keep devices separated and make daily management easier.

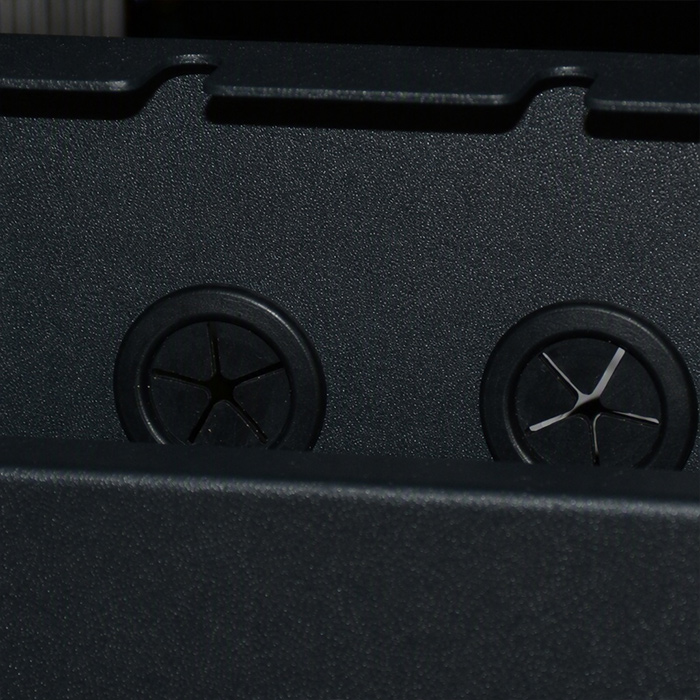

The cable management structure keeps the inside of the cabinet neat and organized.

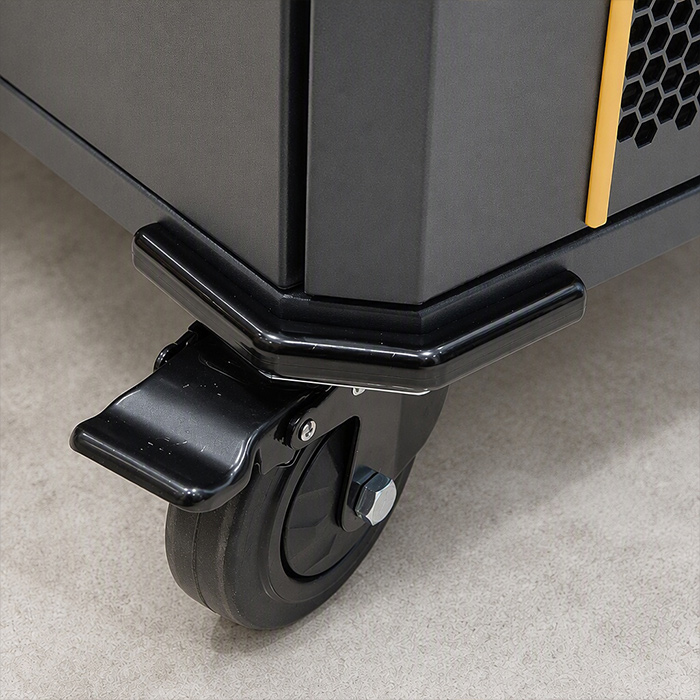

Casters let the cabinet move smoothly and steadily.
● Over-Voltage: Automatically cuts power when voltage rises abnormally to protect device circuits.
● Over-Current: Automatically limits current beyond the safe range to prevent circuit and device overload damage.
● Short-Circuit: Instant power cut under abnormal short-circuit conditions to reduce electrical failure risk.
● Over-Temperature: Automatic protection when internal temperature is abnormal, preventing overheating hazards.
● Aging Test: 100% full-load aging test before shipment to ensure long-term stable operation.
● Insulation & Grounding: High-voltage insulation test and earth continuity test, compliant with CE and international safety standards.
Device Compatibility
Compatible with laptops, tablets, and USB devices under 15.6\" of all major brands.
Standard bays fit devices under 15.6\"; slot width configurable, models up to 16\" available.
Devices charge via their own adapters plugged into cabinet AC outlets (EU standard).
Optional USB-A / USB-C PD / AC / Sync & Charge interface combinations.
Before bulk purchase, provide the device model list to confirm bay size and interface compatibility.
OEM/ODM Customization Options
Multiple capacity options from 8 to 30 slots per purchasing needs.
Slot width and internal structure customizable per device dimensions.
Four interface options: USB-A / USB-C PD / AC / Sync & Charge.
Mechanical key / PIN / RFID electronic lock options.
Color, logo, silk-screen/laser engraving customizable.
US/EU/UK/AU plug standards per target market.
Wooden pallet, carton, and corner protection packaging per project.
CAD drawings and 3D renderings provided for project confirmation.
● Packaging: Fully assembled: wooden pallet + honeycomb carton + PE foam + anti-scratch film + corner protection.
● Package Contents: LK-CC30T65 cabinet ×1, power cord ×1, keys ×2, user manual ×1.
● Sample Shipping: Samples typically ship in 7-14 business days, subject to stock and customization requirements.
● Bulk Shipment: Small trial orders and bulk project supply supported; lead time per order volume and customization.
● MOQ: 10 pcs (typically 5-10 for customized, depending on level)
● Data to Confirm: To be added: package dimensions, gross/net weight, container quantity, shipping suggestions.
Recommended Accessories
USB-C short cable (0.5m): customized length with E-Mark certified chip.
Smart PDU with configurable options to meet different needs, making the charging cart more feature-rich.
Optional items can include power cord, spare keys, numbering labels, cable clips, spare casters, and manual kits according to project needs.
