A high-capacity 50-slot triple-tier centralized phone charging management solution for schools, large enterprises, government institutions, and tender projects — maximizing space efficiency with a vertical high-density design.
Devices: Smartphones, small power banks, and USB-charged devices under 8 inches.

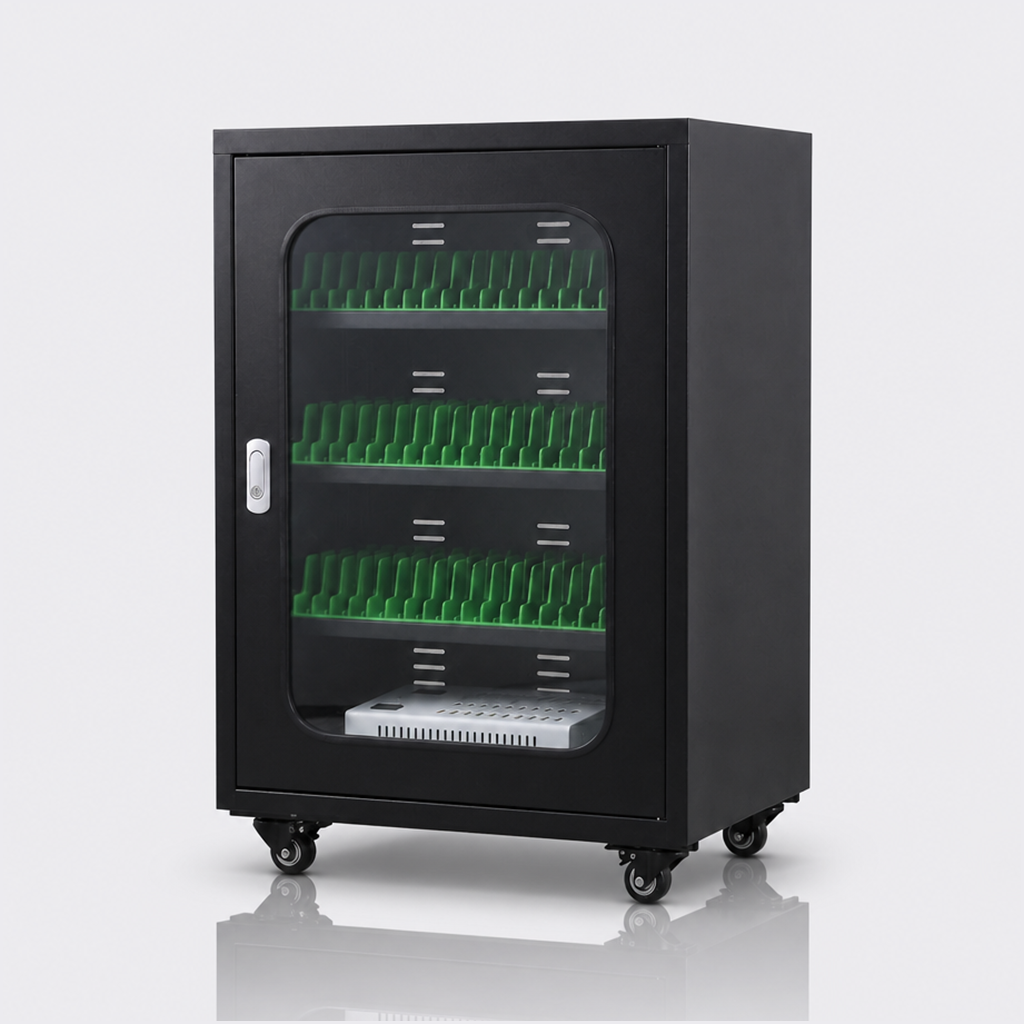

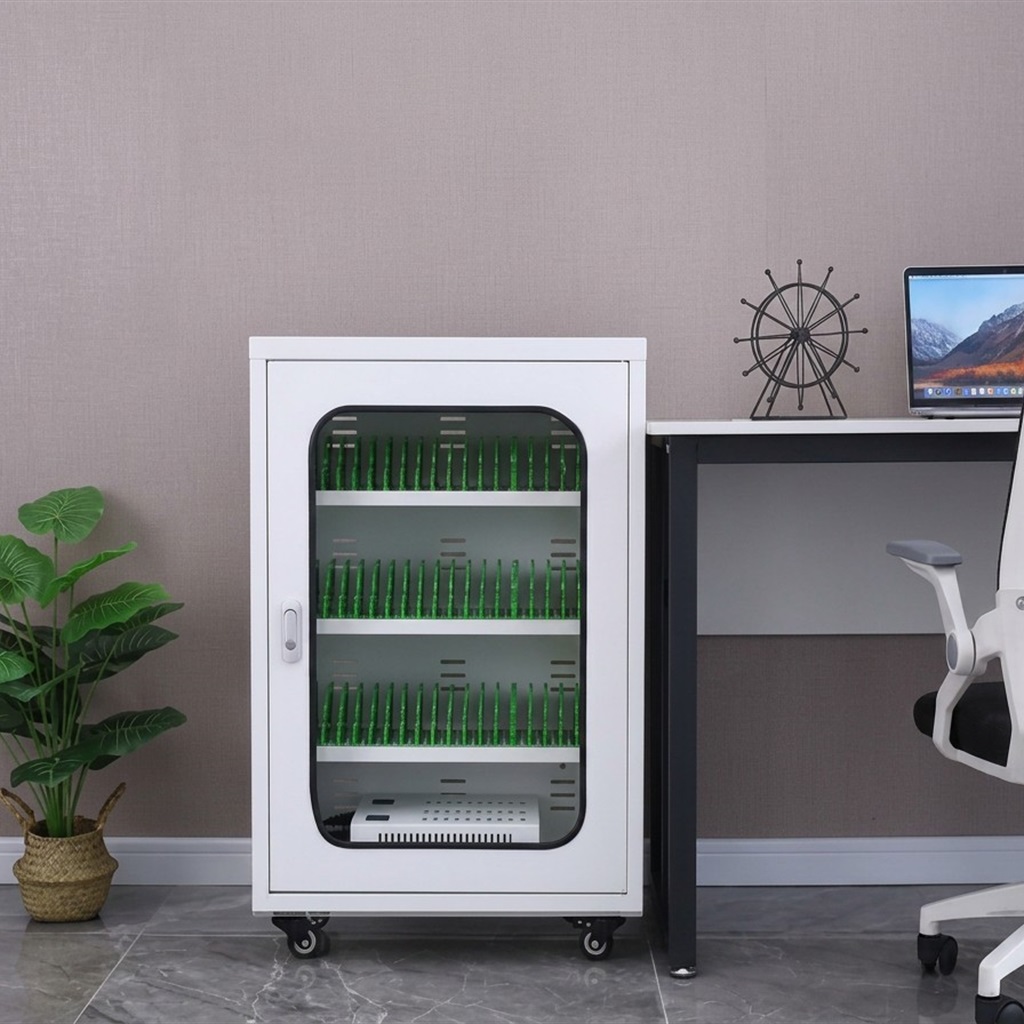

LK-PH50 is a triple-tier vertical charging locker achieving 50 slots at 790mm height — the core model for school and large-institution bulk management. Three independent charging systems deliver 500W total power, covering full-load fast charging for all 50 devices. The tempered glass door, side ventilation slots, and industrial-grade cold-rolled steel structure ensure stability and safety under long-term high-frequency use. The vertical design maximizes space utilization, ideal for placement against walls or in corners.
3-tier vertical structure achieves 50 slots within 790×580×270mm height — a single unit covers an entire class or department.
Three independent charging systems deliver 500W total — ensures no power bottleneck for simultaneous QC fast charging of all 50 devices.
Made of thickened cold-rolled steel with electrostatic powder coating — purpose-built for long-term high-frequency school and institutional use, balancing durability and pry resistance.
Tempered glass door allows device inspection without opening — balancing visual management, security protection, and long-term durability.
Side ventilation slot design with internal convection channels for effective heat dissipation, ensuring stability during extended full-load operation.
All 50 slots across 3 tiers separated by ABS flame-retardant engineering plastic dividers — resistant to ignition and spread, enhancing overall safety.
Applications
For grade-level or school-wide centralized phone management, suitable for exams, classrooms, and boarding management.
For meeting rooms, training centers, and employee service hubs in corporate HQs or large branches.
Suitable for educational equipment procurement, government project tenders, and other bulk scenarios requiring high capacity.
For centralized phone storage in standardized exams, professional certification tests, and similar scenarios.
Technical Specifications
| Capacity | 50 slots, supporting simultaneous charging for 50 devices |
| Charging Output | 5V/2A per port (Max 10W), QC 2.0/3.0 compatible |
| Total Output | 500W |
| Input Voltage | AC 100-240V, 50/60Hz, wide-voltage input for global use |
| Dimensions | 790×580×270mm (H × W × D) |
| Slot Size | 160×22×230mm (H × W × D) |
| Compatible Devices | Smartphones under under 8 inches and small power banks |
| Body Material | Cold-rolled steel with electrostatic powder coating |
| Divider Material | ABS flame-retardant engineering plastic |
| Door Material | Tempered glass see-through door |
| Colors | Black / White (customizable) |
| Tiers | 3 tier(s) |
| Weight | 25 kg |
| Safety Protection | Overload, short-circuit protection, low-voltage safe output, auto power-off |
| Accessories | Power cord ×1, keys ×2 |
| Warranty | 3-year warranty for body structure, 1-year for electronic components |
Product Structure and Details
Tough ABS slots hold phones upright — better cooling, easy access.
Magnetic latch keeps the door firmly shut — no swinging from wind or bumps.
Ventilation openings improve airflow for cooler bulk charging.
● Low-Voltage Safe Output: 5V low-voltage output per port — well below the human body safety voltage threshold.
● Overload Protection: When total load exceeds the 500W safe range, the system automatically limits current.
● Short-Circuit Protection: Provides instant protection under abnormal short-circuit conditions.
● Flame-Retardant Materials: Slot dividers use ABS flame-retardant engineering plastic — resistant to ignition and flame spread.
● Auto Power-Off: Automatically stops charging when device is full, preventing overcharge and extending battery life.
● Cabinet Grounding: Metal body design supports grounding, compliant with international electrical safety standards.
Device Compatibility
Compatible with all major smartphone brands (iPhone, Samsung, Google Pixel, Xiaomi, Huawei, etc.) and small USB-charged devices.
Each slot supports up to 160×22×230mm, accommodating phones under under 8 inches and standard power banks.
Automatically recognizes QC 2.0/3.0, Apple 2.4A, Samsung AFC, BC1.2, and other protocols.
Standard-thickness cases (≤2mm) recommended. Ultra-thick or kickstand cases should be tested in advance.
Before bulk purchase, confirm actual device dimensions, case thickness, and required cable specs.
OEM/ODM Customization Options
Supports silk-screen printing and laser engraving on the body, plus branding for nameplates and packaging.
Beyond black and white, body colors can be customized per project (MOQ applies, please inquire).
Color box, white box, and outer carton labeling customization available for OEM and channel distribution.
Standard mechanical key lock; combination locks or custom key management systems available.
Default plug matches target market standard (US/EU/UK/AU). Please confirm before bulk purchase.
● Packaging Method: Single-unit independent packaging; outer carton printing customizable per OEM.
● Package Contents: LK-PH50 charging locker body ×1, power cord ×1, keys ×2, user manual ×1.
● Sample Shipping: Samples typically ship within 7-14 business days, subject to stock and customization.
● Bulk Shipment: Small trial orders and large project shipments supported; lead time per order volume.
● MOQ: MOQ 10 units for standard models; please inquire for customized models.
● Data to Confirm: To be added: package dimensions, gross/net weight, container quantity, shipping suggestions.
Recommended Accessories
USB-C short cable (0.5m): customized length with E-Mark certified chip.
Smart PDU with configurable options to meet different needs, making the charging cart more feature-rich.
Optional items can include power cord, spare keys, numbering labels, cable clips, spare casters, and manual kits according to project needs.
