The flagship model of the entire series, designed for ultra-large-scale deployments — school-wide solutions, large corporate campuses, government bulk procurement, and key tender projects — delivering the ultimate 60-slot triple-tier centralized phone charging management solution.
Devices: Smartphones, small power banks, and USB-charged devices under 8 inches.

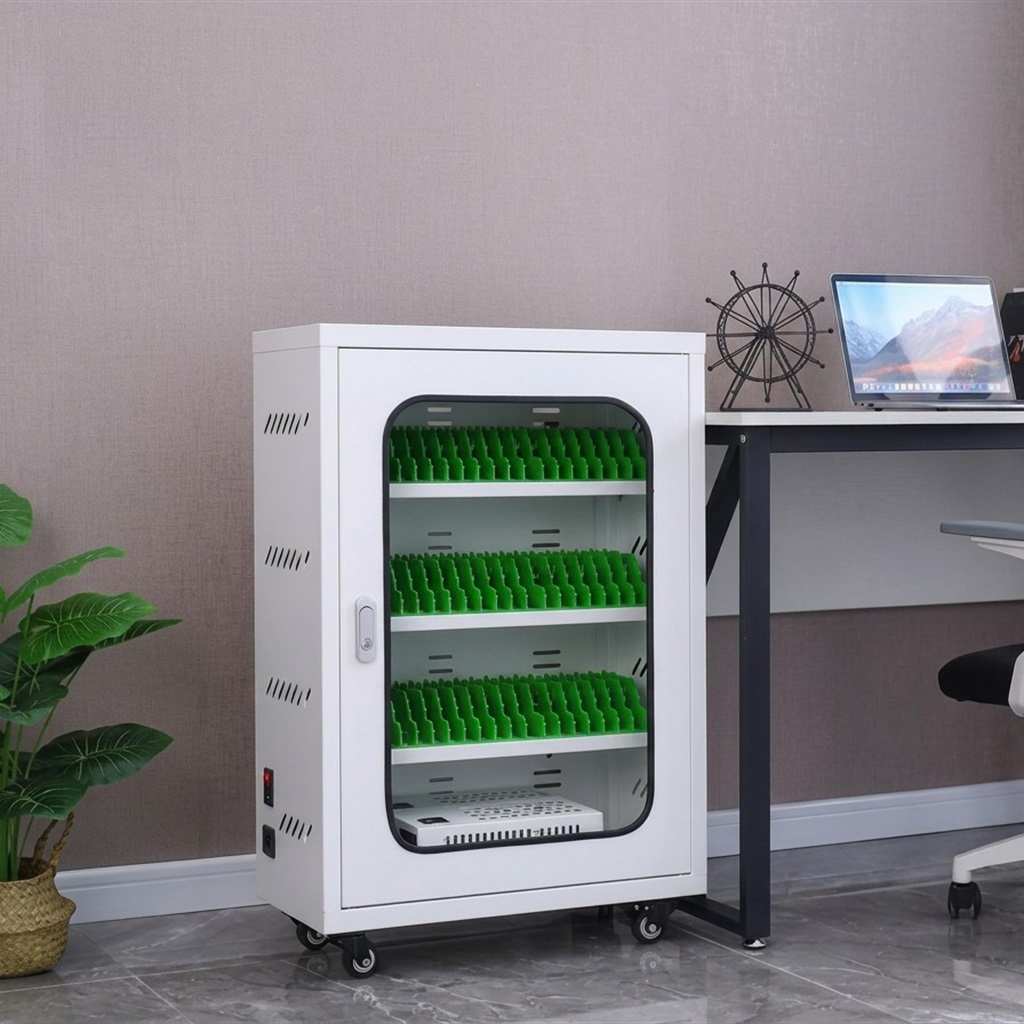

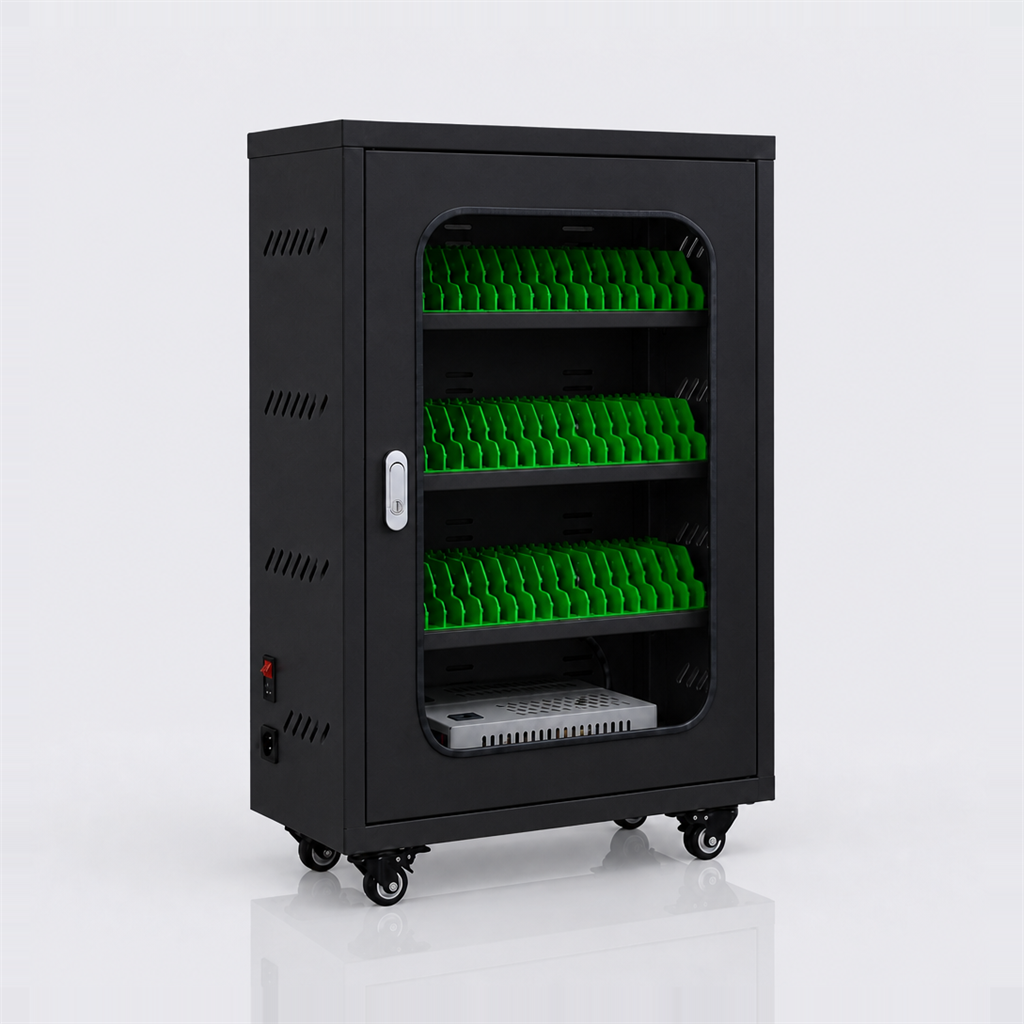

LK-PH60 is the flagship model in the phone charging locker series, achieving 60 slots across three tiers within 790mm height and 580mm width — a single unit covers an entire class of students or a full department of employees. Three independent charging systems deliver an impressive 600W total power, ensuring worry-free full-load fast charging for all slots. The industrial-grade cold-rolled steel structure, tempered glass door, and side active ventilation design are purpose-built for high-frequency, large-scale school and institutional use.
3-tier vertical structure achieves 60 slots within 790×580×270mm height — a single unit covers an entire class or department.
Three independent charging systems deliver 600W total — ensures no power bottleneck for simultaneous QC fast charging of all 60 devices.
Made of thickened cold-rolled steel with electrostatic powder coating — purpose-built for long-term high-frequency school and institutional use, balancing durability and pry resistance.
Tempered glass door allows device inspection without opening — balancing visual management, security protection, and long-term durability.
Side ventilation slot design with internal convection channels for effective heat dissipation, ensuring stability during extended full-load operation.
All 60 slots across 3 tiers separated by ABS flame-retardant engineering plastic dividers — resistant to ignition and spread, enhancing overall safety.
Applications
For school-wide centralized phone management, deployable by classroom or grade in bulk.
For large-scale device management in tech campuses, call centers, and shared service centers.
Suitable for key government tender projects in education technology, smart campuses, and public service facilities.
For standardized device management in chain training institution HQs or large training bases.
Technical Specifications
| Capacity | 60 slots, supporting simultaneous charging for 60 devices |
| Charging Output | 5V/2A per port (Max 10W), QC 2.0/3.0 compatible |
| Total Output | 600W |
| Input Voltage | AC 100-240V, 50/60Hz, wide-voltage input for global use |
| Dimensions | 790×580×270mm (H × W × D) |
| Slot Size | 160×22×230mm (H × W × D) |
| Compatible Devices | Smartphones under under 8 inches and small power banks |
| Body Material | Cold-rolled steel with electrostatic powder coating |
| Divider Material | ABS flame-retardant engineering plastic |
| Door Material | Tempered glass see-through door |
| Colors | Black / White (customizable) |
| Tiers | 3 tier(s) |
| Weight | 25.55 kg |
| Safety Protection | Overload, short-circuit protection, low-voltage safe output, auto power-off |
| Accessories | Power cord ×1, keys ×2 |
| Warranty | 3-year warranty for body structure, 1-year for electronic components |
Product Structure and Details
Tough ABS slots hold phones upright — better cooling, easy access.
Magnetic latch keeps the door firmly shut — no swinging from wind or bumps.
Ventilation openings improve airflow for cooler bulk charging.
● Low-Voltage Safe Output: 5V low-voltage output per port — well below the human body safety voltage threshold.
● Overload Protection: When total load exceeds the 600W safe range, the system automatically limits current.
● Short-Circuit Protection: Provides instant protection under abnormal short-circuit conditions.
● Flame-Retardant Materials: Slot dividers use ABS flame-retardant engineering plastic — resistant to ignition and flame spread.
● Auto Power-Off: Automatically stops charging when device is full, preventing overcharge and extending battery life.
● Cabinet Grounding: Metal body design supports grounding, compliant with international electrical safety standards.
Device Compatibility
Compatible with all major smartphone brands (iPhone, Samsung, Google Pixel, Xiaomi, Huawei, etc.) and small USB-charged devices.
Each slot supports up to 160×22×230mm, accommodating phones under under 8 inches and standard power banks.
Automatically recognizes QC 2.0/3.0, Apple 2.4A, Samsung AFC, BC1.2, and other protocols.
Standard-thickness cases (≤2mm) recommended. Ultra-thick or kickstand cases should be tested in advance.
Before bulk purchase, confirm actual device dimensions, case thickness, and required cable specs.
OEM/ODM Customization Options
Supports silk-screen printing and laser engraving on the body, plus branding for nameplates and packaging.
Beyond black and white, body colors can be customized per project (MOQ applies, please inquire).
Color box, white box, and outer carton labeling customization available for OEM and channel distribution.
Standard mechanical key lock; combination locks or custom key management systems available.
Default plug matches target market standard (US/EU/UK/AU). Please confirm before bulk purchase.
● Packaging Method: Single-unit independent packaging; outer carton printing customizable per OEM.
● Package Contents: LK-PH60 charging locker body ×1, power cord ×1, keys ×2, user manual ×1.
● Sample Shipping: Samples typically ship within 7-14 business days, subject to stock and customization.
● Bulk Shipment: Small trial orders and large project shipments supported; lead time per order volume.
● MOQ: MOQ 10 units for standard models; please inquire for customized models.
● Data to Confirm: To be added: package dimensions, gross/net weight, container quantity, shipping suggestions.
Recommended Accessories
USB-C short cable (0.5m): customized length with E-Mark certified chip.
Smart PDU with configurable options to meet different needs, making the charging cart more feature-rich.
Optional items can include power cord, spare keys, numbering labels, cable clips, spare casters, and manual kits according to project needs.
